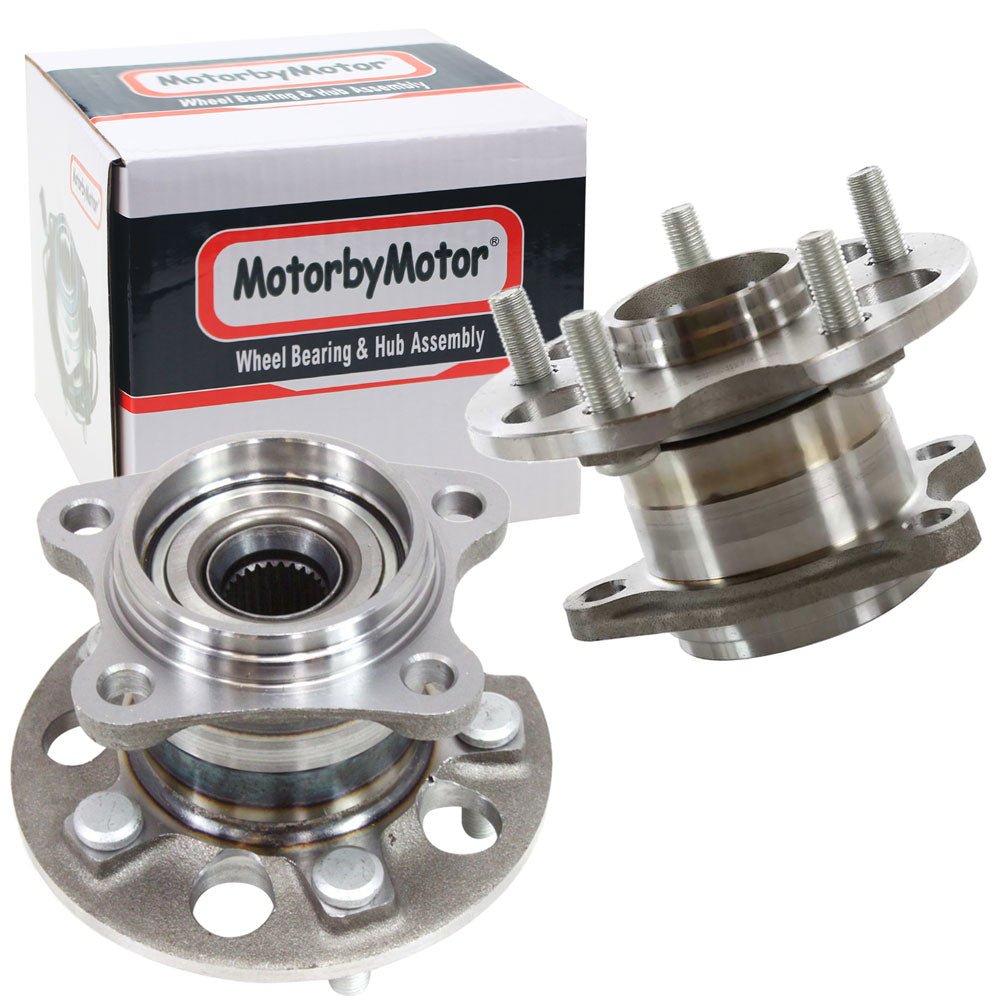

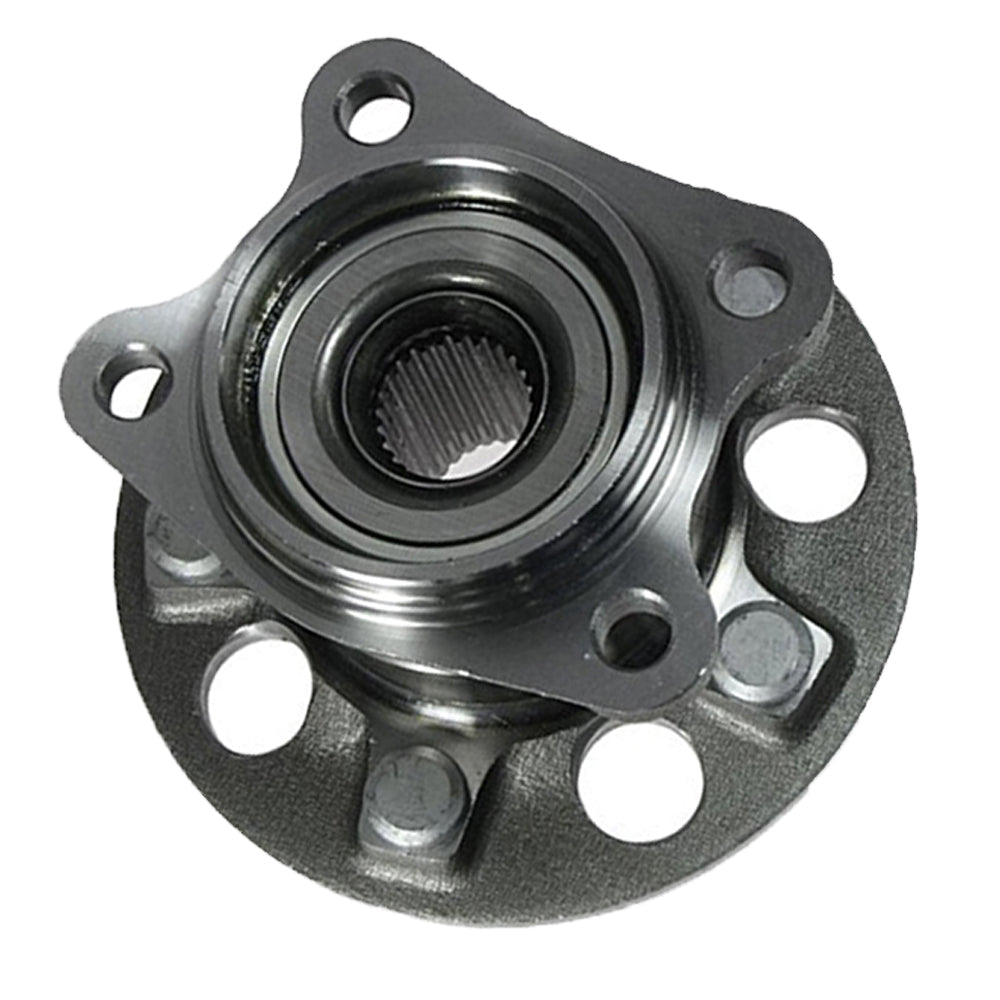

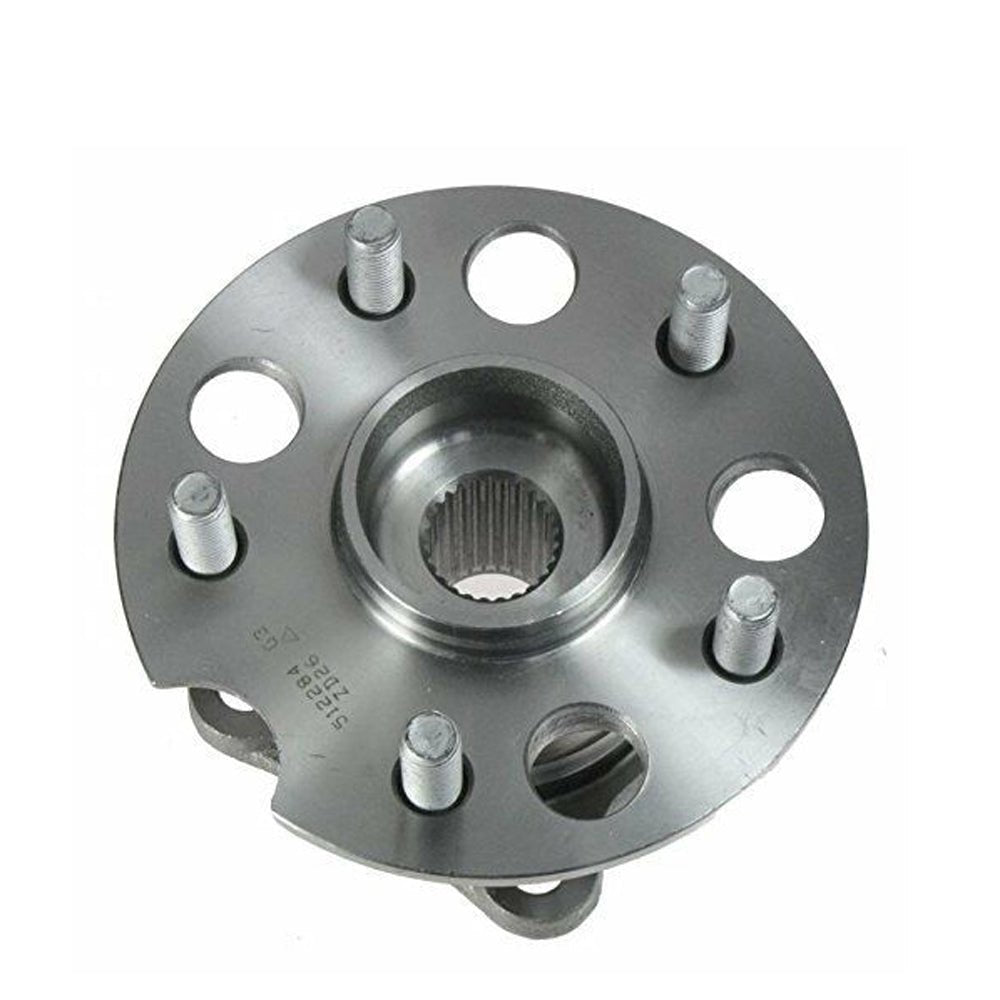

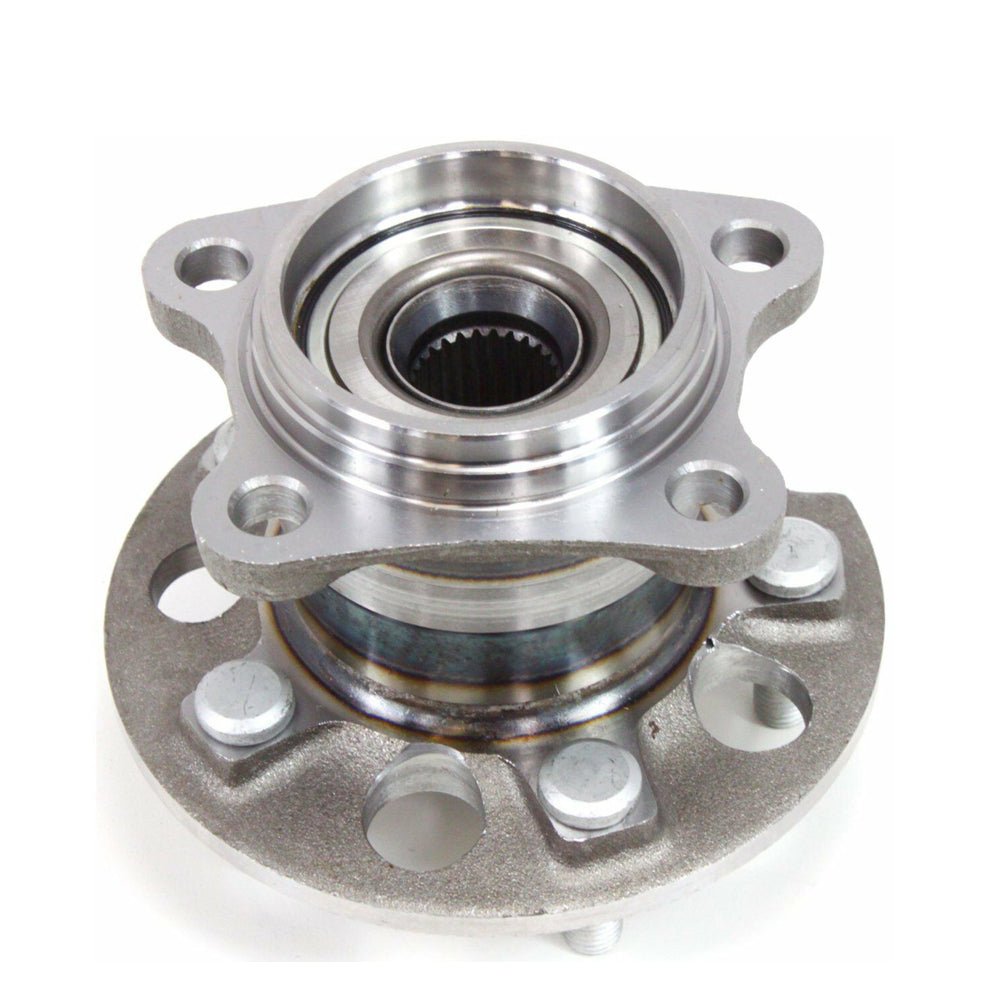

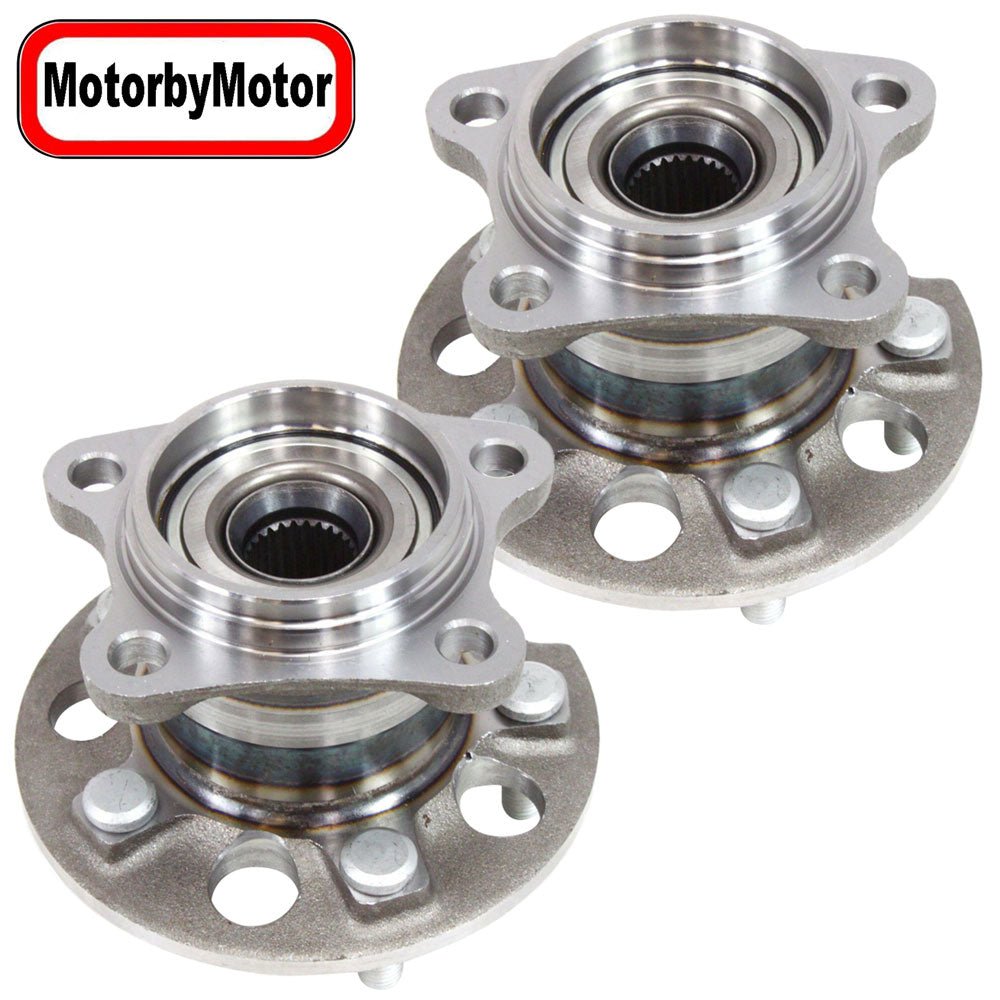

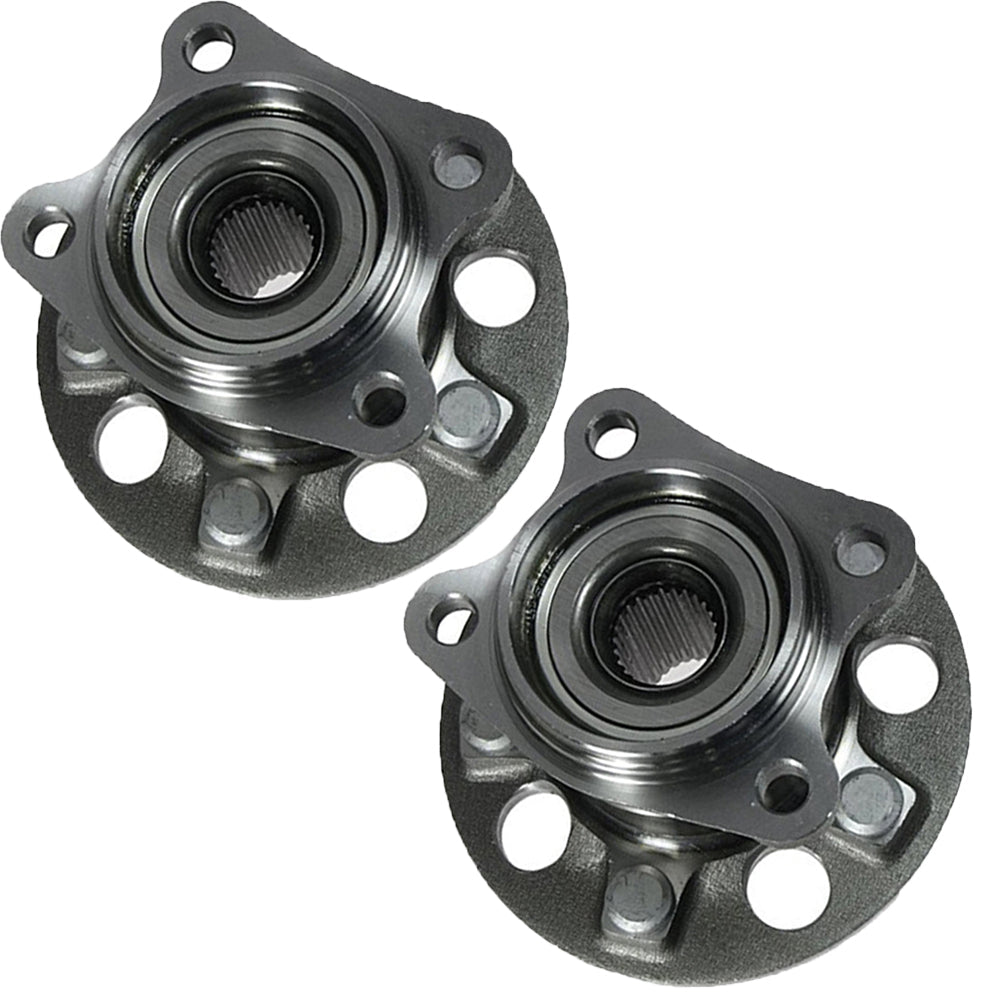

Toyota Venza Rear Wheel Bearing Hub Assembly 512284
Toyota Venza Rear Wheel Bearing Hub Assembly 512284
Couldn't load pickup availability
Collapsible content
Description
Rear Wheel Bearing Fit Toyota Venza Highlander, 04-09 Lexus RX330 RX350 RX400H Wheel Hub, 5 Lugs, 4WD, 512284 (2 Pack)
Fit:
04 05 06 Lexus RX330 AWD
07 08 09 Lexus RX350 AWD
06 07 08 Lexus RX400H
06 07 08 Lexus RX400h
04 05 06 07 08 09 10 11 12 13 Toyota Highlander 4WD
04 05 06 07 08 09 10 11 12 13 Highlander Hybrid 4WD
04 05 06 07 08 09 10 11 12 13 Toyota Highlander Hybrid Limited 4WD
04 05 06 07 08 09 10 11 12 13 Toyota Highlander Limited 4WD
04 05 06 07 08 09 10 11 12 13 Toyota Highlander Plus 4WD
04 05 06 07 08 09 10 11 12 13 Toyota Highlander SE 4WD
04 05 06 07 08 09 10 11 12 13 Toyota Highlander SE AWD
09 10 11 12 13 14 15 16 Toyota Venza
09 10 11 12 13 14 15 16 Toyota Venza (Can)
09 10 11 12 13 14 15 16 Toyota Venza LE
09 10 11 12 13 14 15 16 Toyota Venza Limited
09 10 11 12 13 14 15 16 Toyota Venza XLE
Description:
Fits either LH (Driver Side) or RH (Passenger Side) Rear
Built to strict quality control standards
Correct for 4WD & AWD models as listed per application
Direct Fit Replacement
Highest Quality Materials
Precision Engineered
Not included ABS Sensor
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 5
Driven Or Non-Driven: Driven
Number Of Splines: 26
Lug Bolt Thread Size: M12-1.50
Total Hub Diameter (in): 5.978 Inch
Total Hub Diameter (mm): 151.841mm
Total Hub Height (in): 4.40 Inch
Total Hub Height (mm): 111.76mm
Flange Diameter (in): 5.978 Inch
Flange Diameter (mm): 151.841mm
Flange Offset (in): 2.837 Inch
Flange Offset (mm): 72.06mm
Flange Shape: Trapezoid
Flange Bolt Thread Size: 31/64 Inch
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 3.30 Inch
Hub Pilot Diameter (mm): 83.82mm
