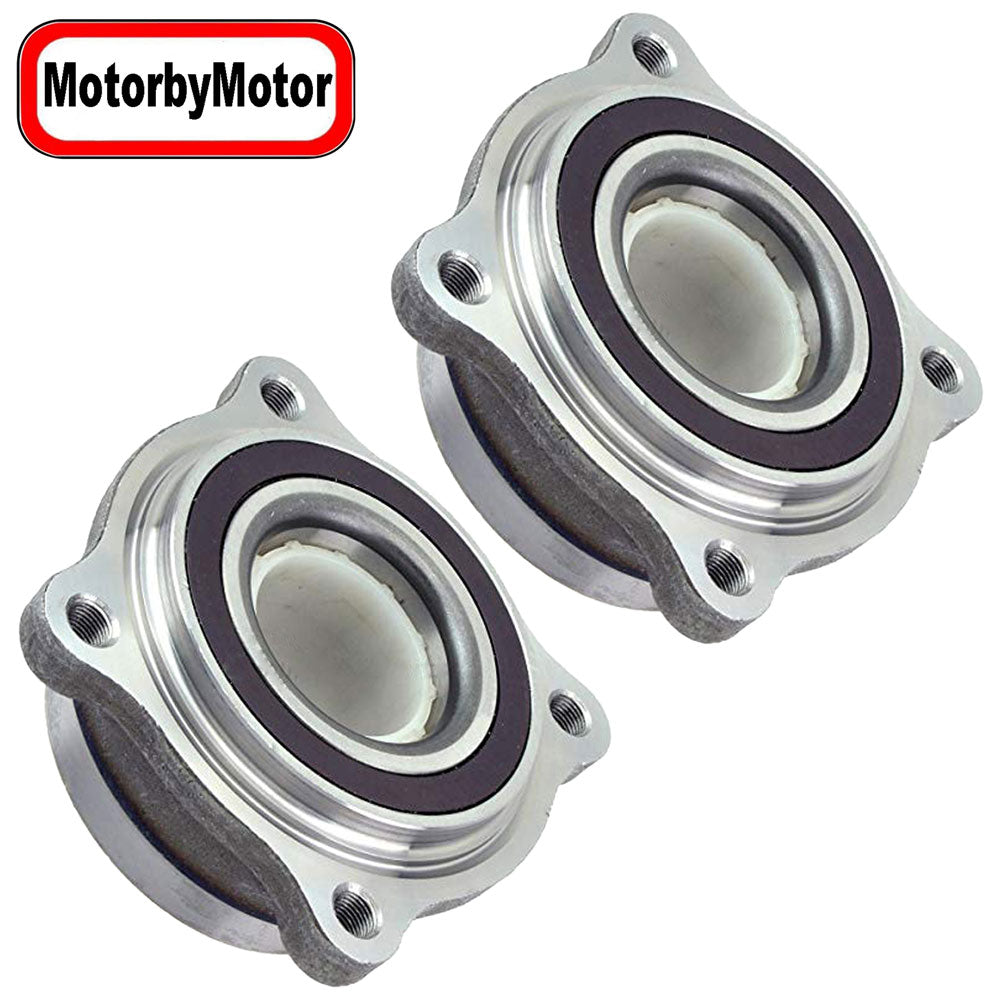

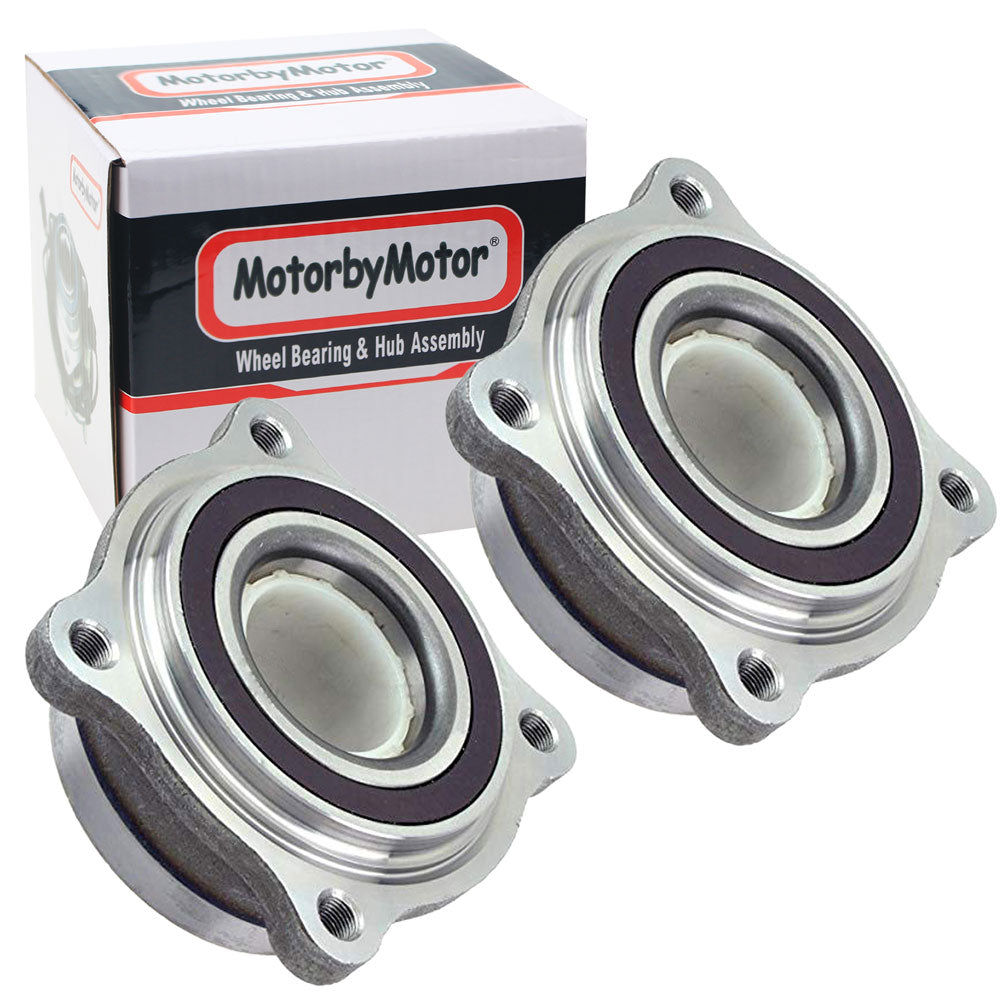

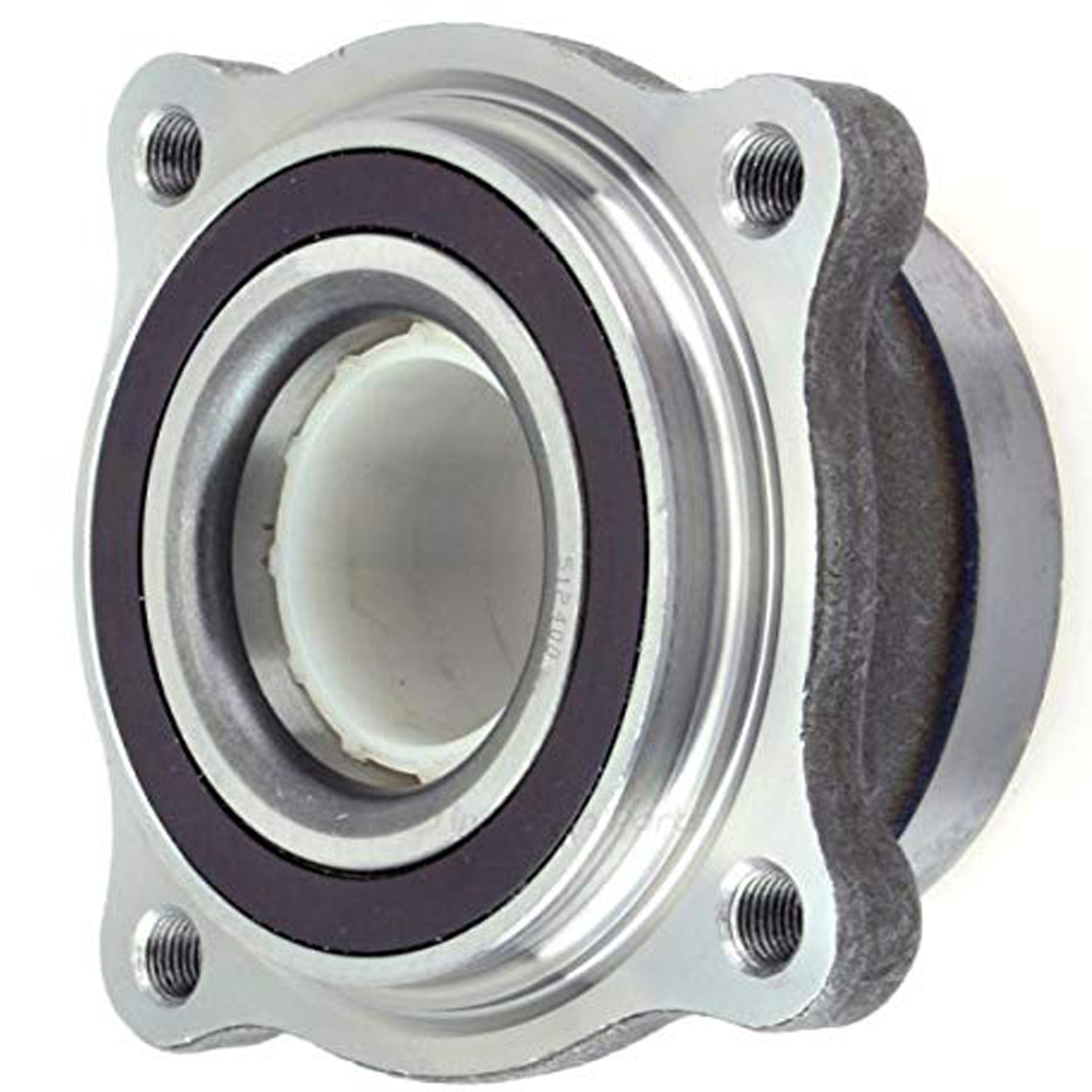

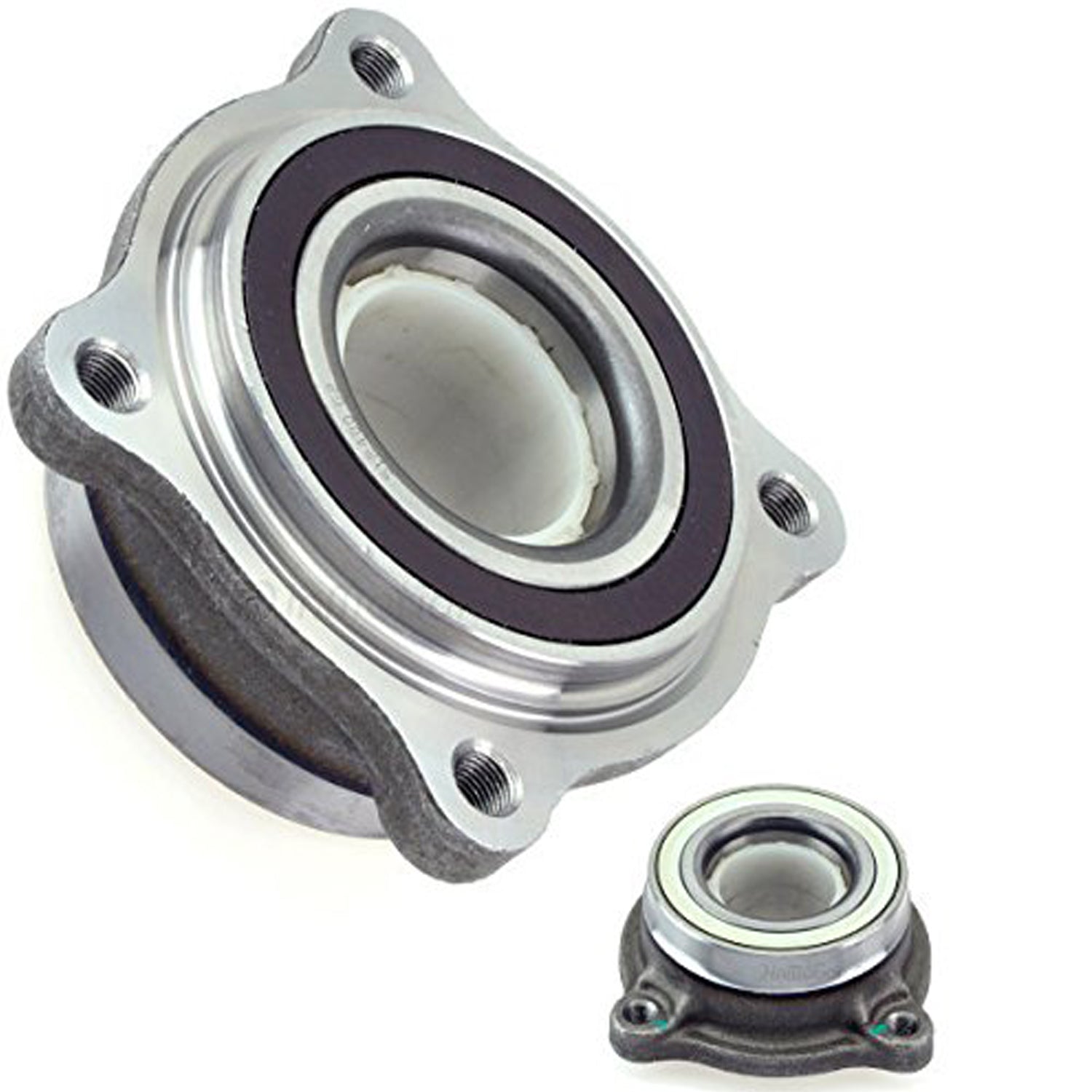

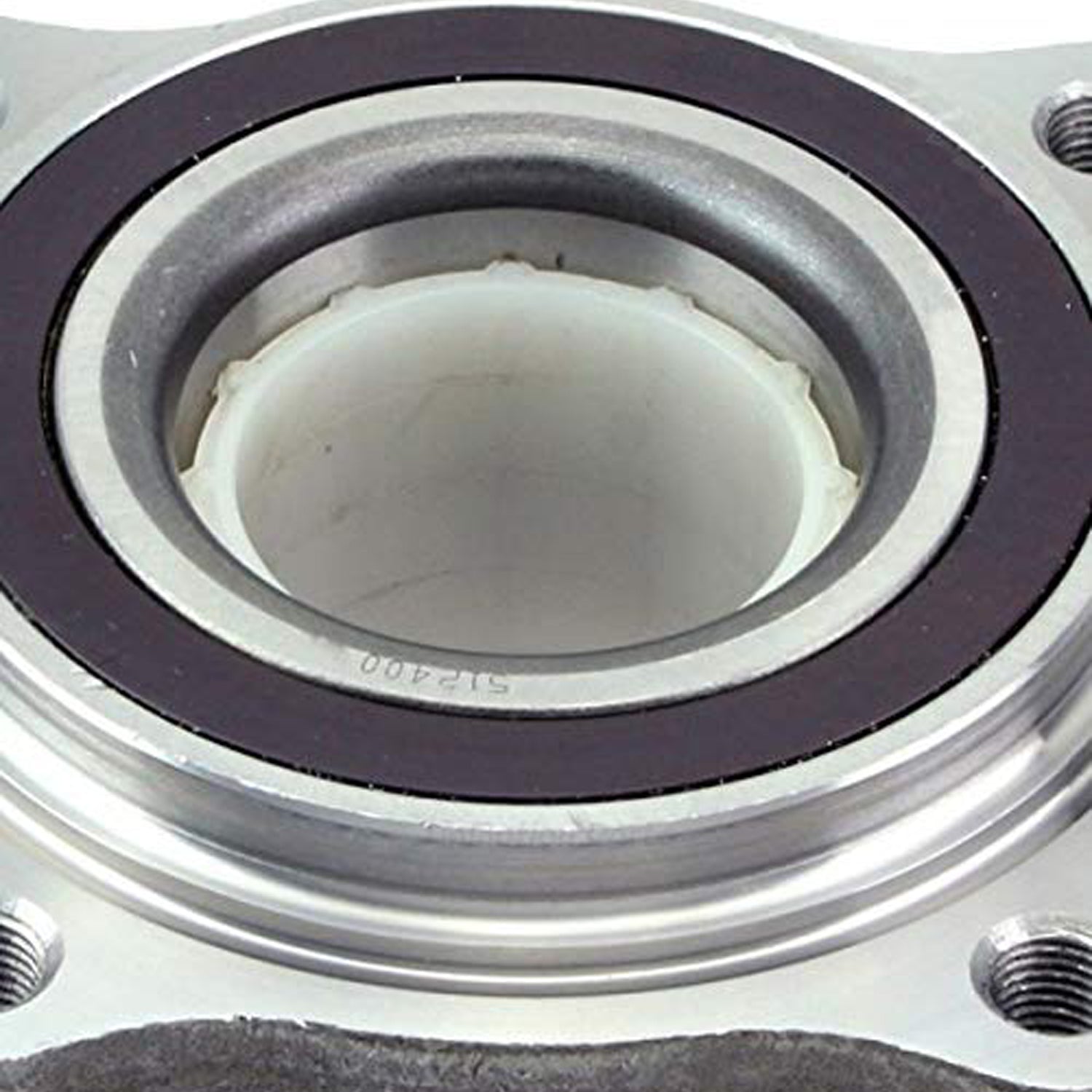

Toyota Sequoia Wheel Hub 2008-2019

Toyota Sequoia Wheel Hub 2008-2019

$74.05 USD
$88.99 USD $74.05 USD
Sale Sold out
Shipping calculated at checkout.
SKU: RB512400x2
View full details

Description

Rear Wheel Bearing Fit 2008-2019 Toyota Sequoia Wheel Hub,512400 (2 Pack)


Fit
2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 Toyota Sequoia.

Description:

Position:Driver(LH Left) or Passenger (RH Right) Side Rear
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 0
Number Of Flange Bolts Included: 5
Driven Or Non-Driven: Non-Driven
Number Of Splines: 0
ABS Ring Type: Encoder
Lug Bolt Thread Size: M12-1.50
Total Hub Diameter (in): 5.35 Inch
Total Hub Diameter (mm): 135.89mm
Hub Centerbore Diameter (in): 5.59 Inch
Hub Centerbore Diameter (mm): 142mm
Total Hub Height (in): 6.457 Inch
Total Hub Height (mm): 164mm
Flange Diameter (in): 5.349 Inch
Flange Diameter (mm): 135.89mm
Flange Offset (in): 2.549 Inch
Flange Offset (mm): 64.76mm
Flange Shape: Square
Material: Steel
Bearing Type: Ball
Outer Ring Width (in): 2.44 Inch
Inner Ring Width (in): 2.44 Inch
Hub Pilot Diameter (in): 4.173 Inch
Hub Pilot Diameter (mm): 106mm
