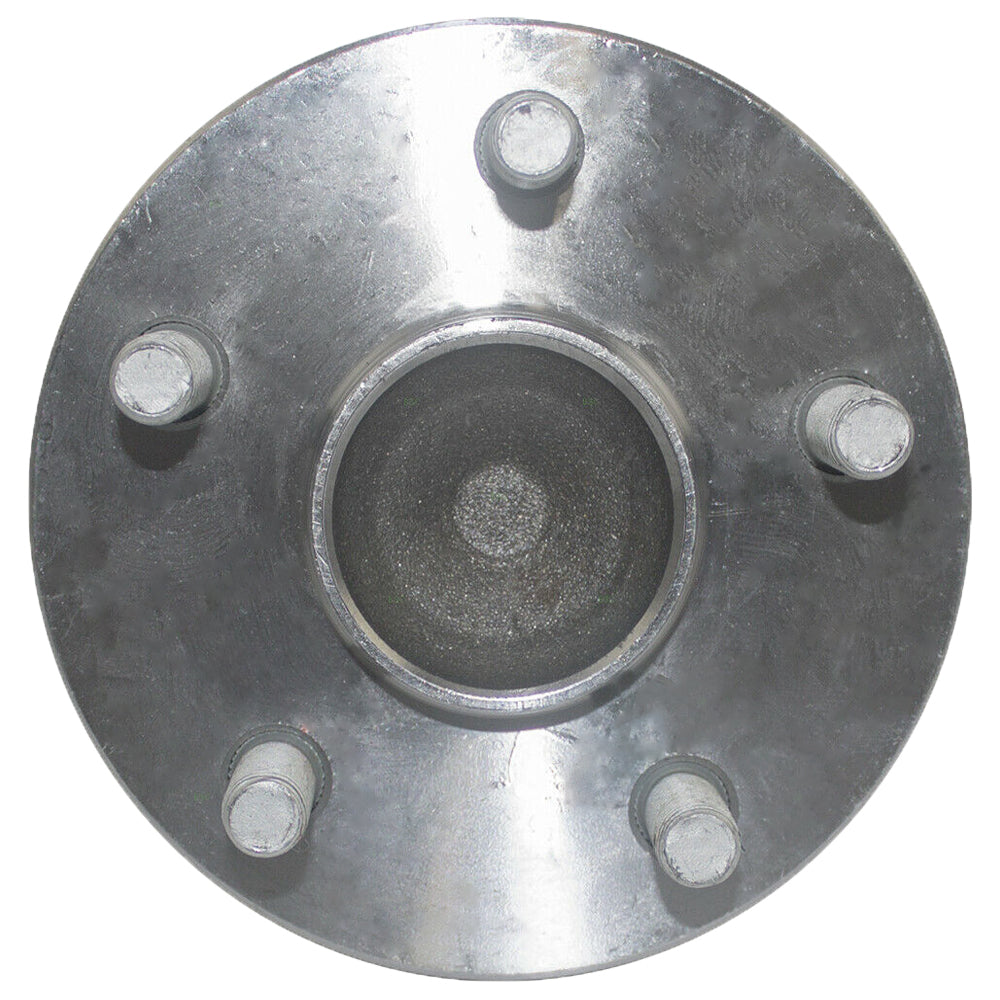

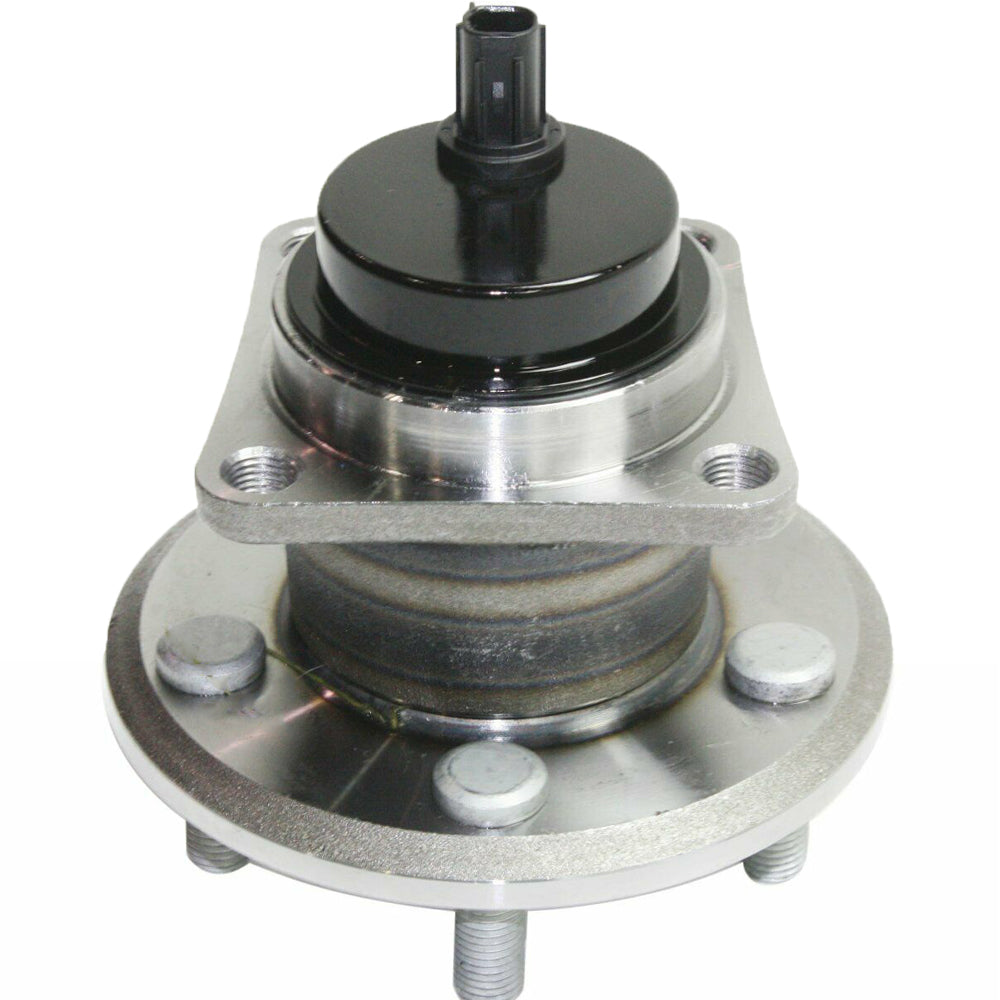

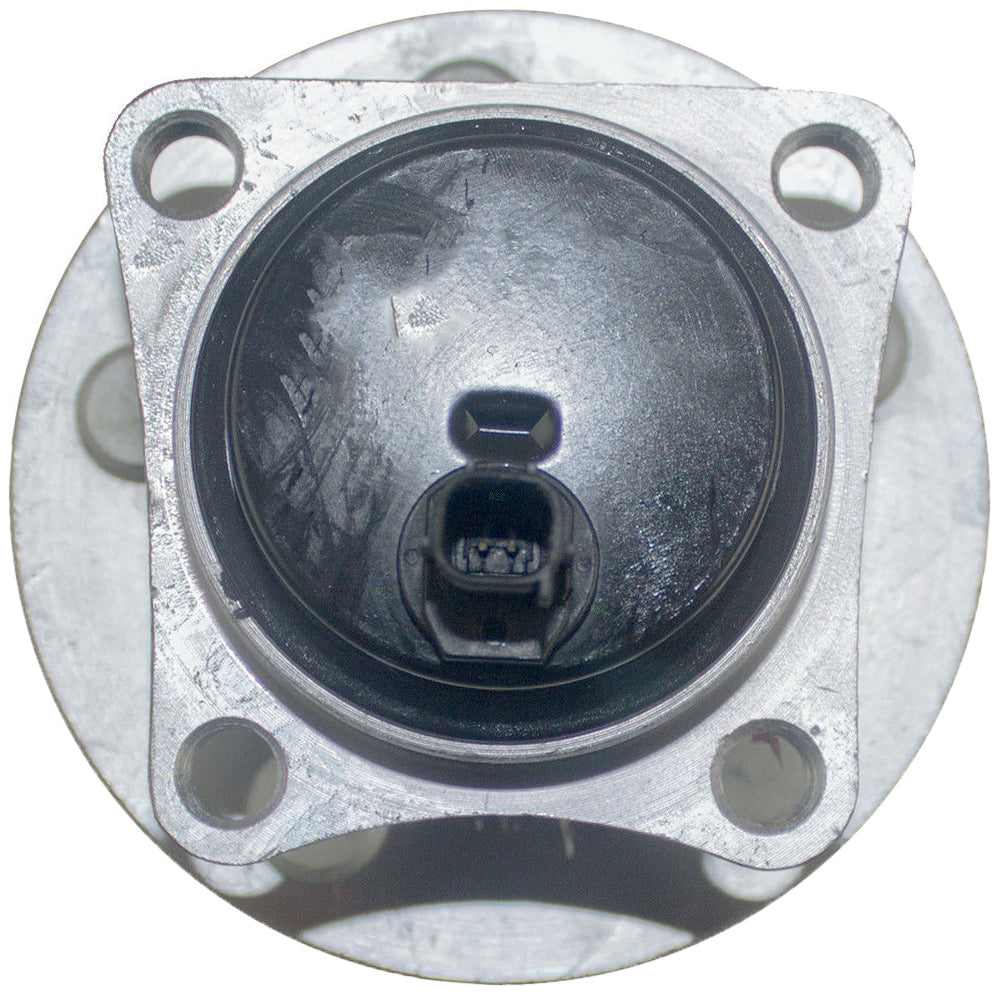

Toyota Corolla Wheel Hub 2009-2019
Toyota Corolla Wheel Hub 2009-2019
Couldn't load pickup availability
Collapsible content
Description

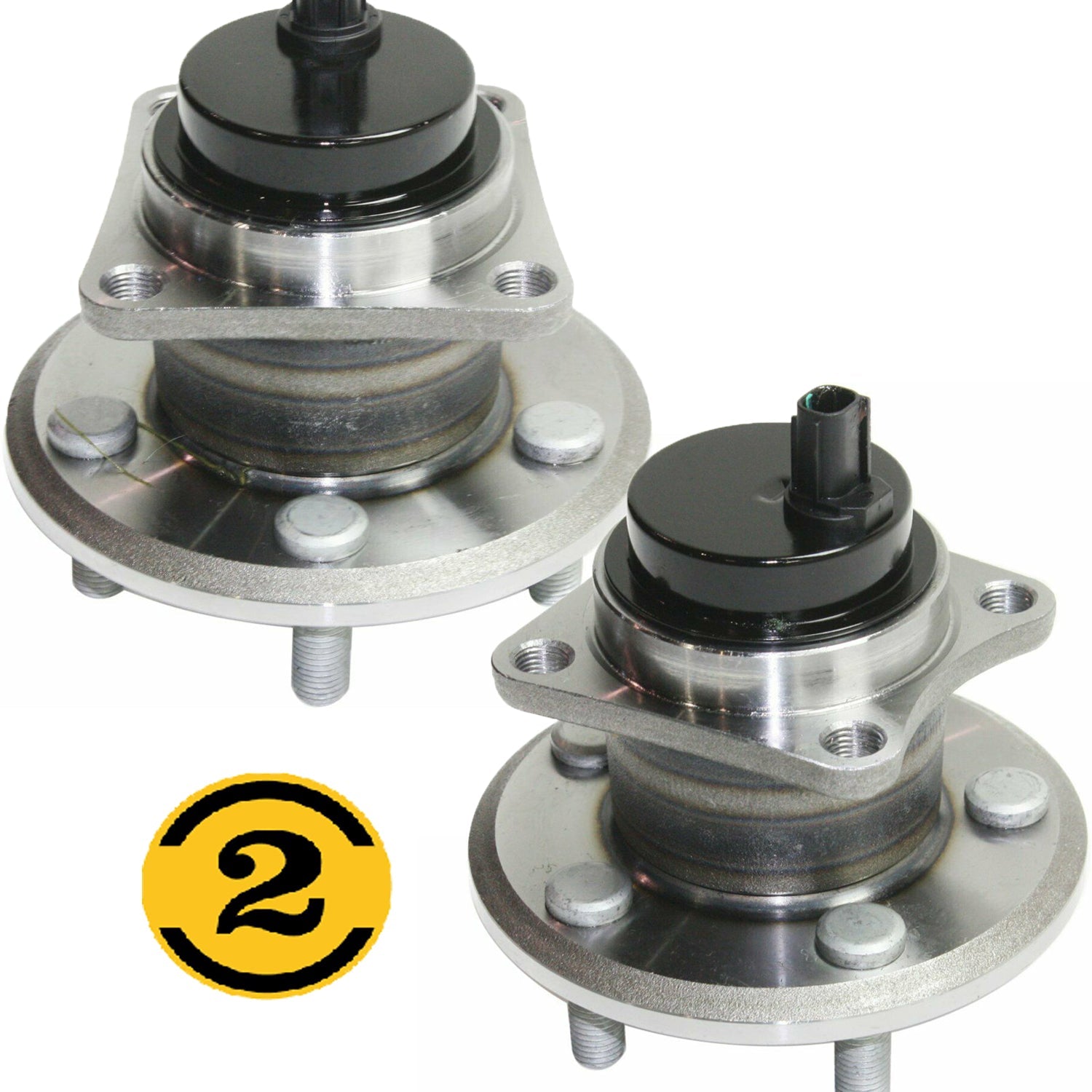

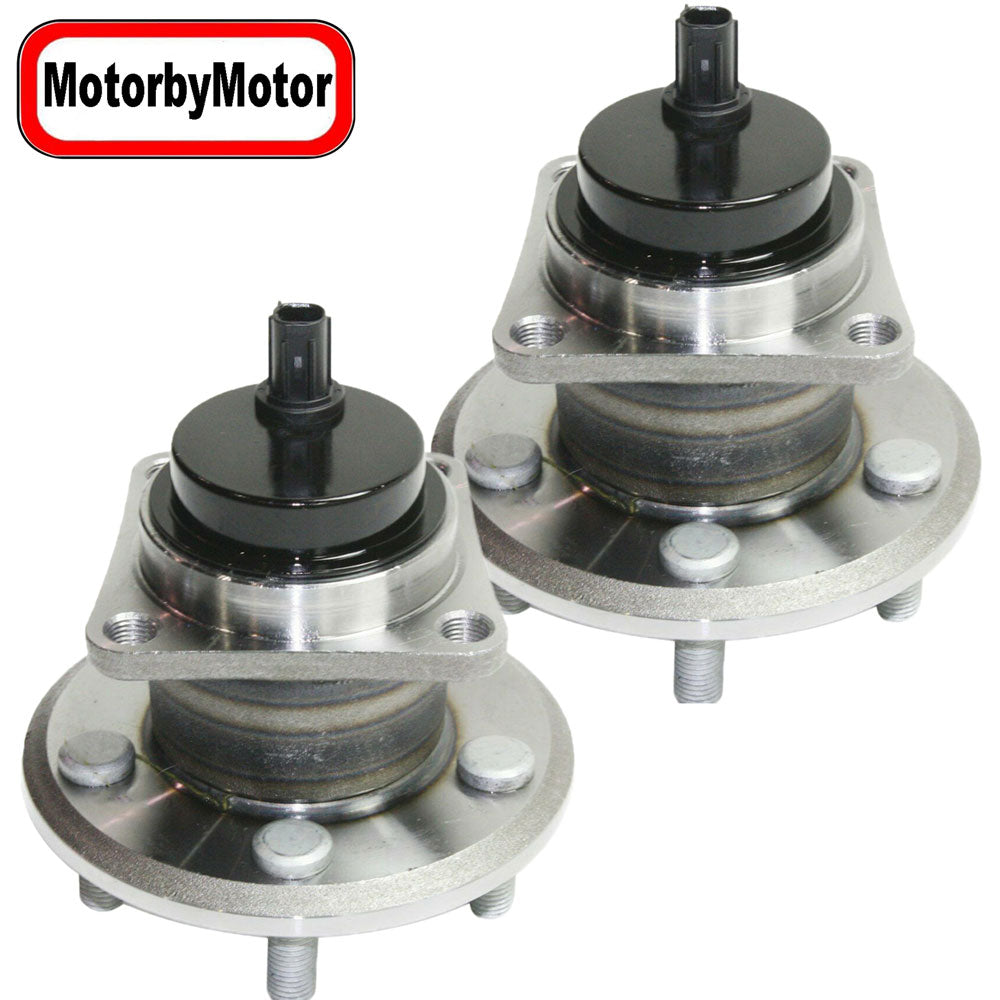

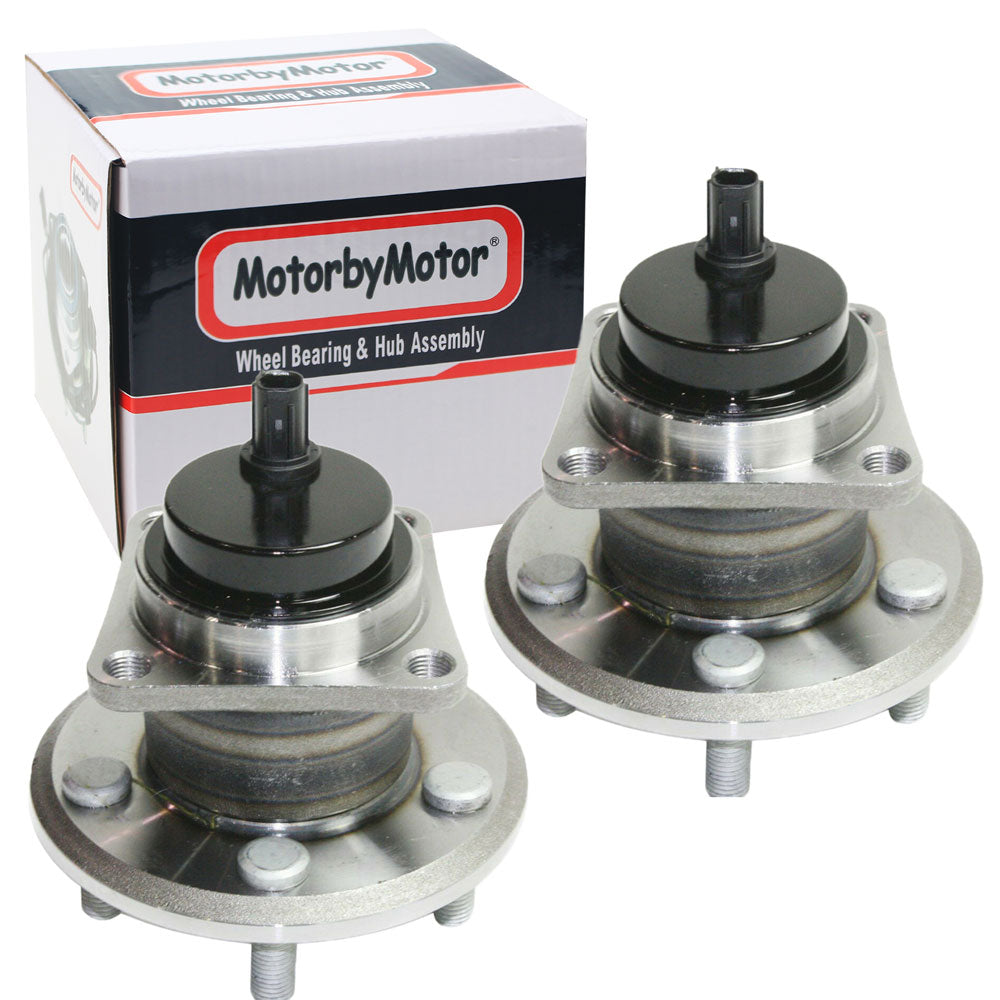

Rear Wheel Bearing Fit Toyota Corolla, IM，Matrix, 2009 2010 Ponitac Vibe Wheel Hub w/ABS, 5 Lugs, 512403 (2 Pack)
Fit:
2009 2010 Pontiac Vibe 2WD
2009 2010 11 12 13 14 15 16 17 18 2019 Toyota Corolla
2009 2010 11 12 13 14 15 16 17 18 2019 Toyota Corolla 50th Anniv. Edition
2009 2010 11 12 13 14 15 16 17 18 2019 Toyota Corolla CE (Can)
2009 2010 11 12 13 14 15 16 17 18 2019 Toyota Corolla L
2009 2010 11 12 13 14 15 16 17 18 2019 Toyota Corolla LE
2009 2010 11 12 13 14 15 16 17 18 2019 Toyota Corolla LE Eco
2009 2010 11 12 13 14 15 16 17 18 2019 Toyota Corolla LE Eco Plus
2009 2010 11 12 13 14 15 16 17 18 2019 Toyota Corolla S
2009 2010 11 12 13 14 15 16 17 18 2019 Toyota Corolla SE
2009 2010 11 12 13 14 15 16 17 18 2019 Toyota Corolla Special Edition
2009 2010 11 12 13 14 15 16 17 18 2019 Toyota Corolla XLE
2009 2010 11 12 13 14 15 16 17 18 2019 Toyota Toyota Corolla XSE
2017 2018 2019 Toyota Corolla iM
2009 2010 11 12 13 2014 Toyota Matrix
Description:
Position: Driver or Passenger(Left or Right) Side Rear
ABS Sensor Included: Yes
ABS Connector Shape: Square
Driven Or Non-Driven: Non-Driven
ABS Ring Type: Sensor
Total Hub Diameter (in): 5.35 Inch
Total Hub Diameter (mm): 135mm
Hub Centerbore Diameter (in): 3.94 Inch
Hub Centerbore Diameter (mm): 100mm
Total Hub Height (in): 6.457 Inch
Total Hub Height (mm): 164mm
Flange Diameter (in): 5.31 Inch
Flange Diameter (mm): 134.8mm
Flange Offset (in): 2.36 Inch
Flange Offset (mm): 60mm
Flange Shape: Square
Flange Bolt Thread Size: M12-1.25
Material: Steel
Bearing Type: Ball
Hub Pilot Diameter (in): 2.91 Inch
Hub Pilot Diameter (mm): 73.9mm
