Toyota Camry Wheel Hub 2012-2018
Toyota Camry Wheel Hub 2012-2018
Couldn't load pickup availability
Collapsible content
Description

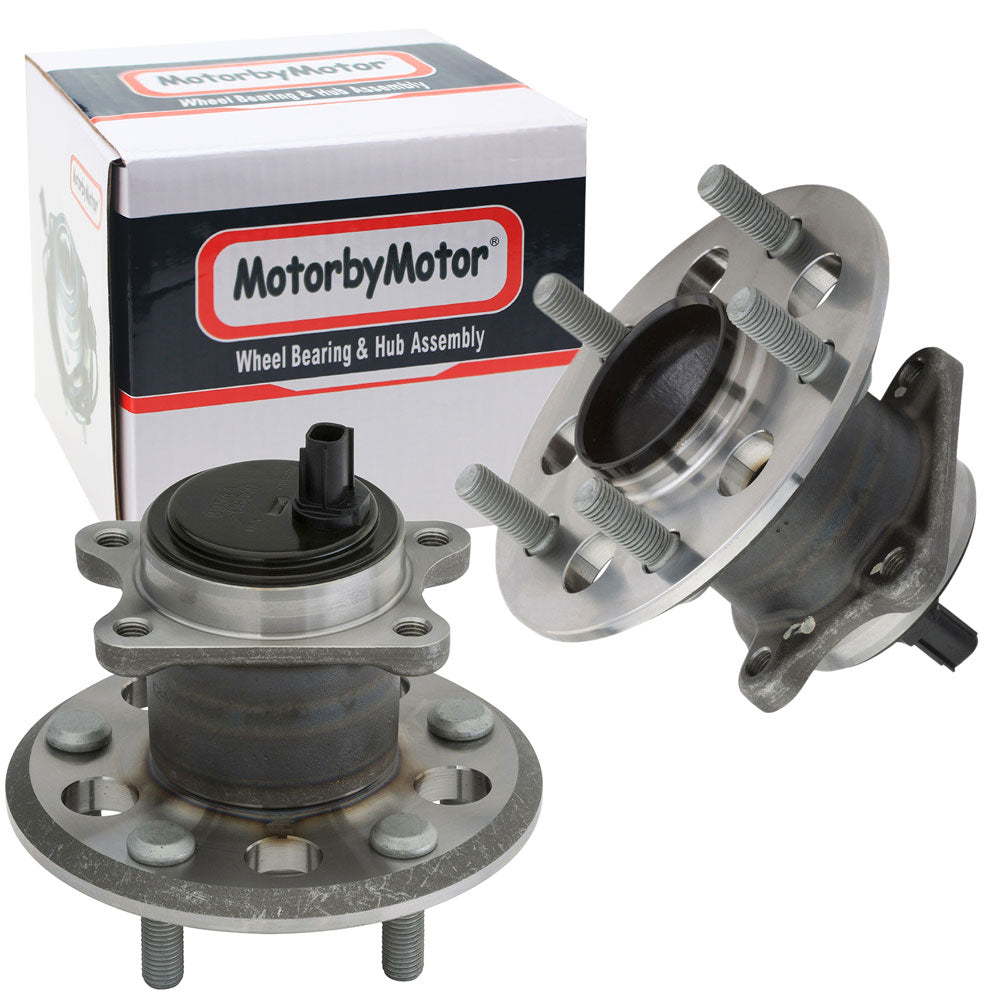

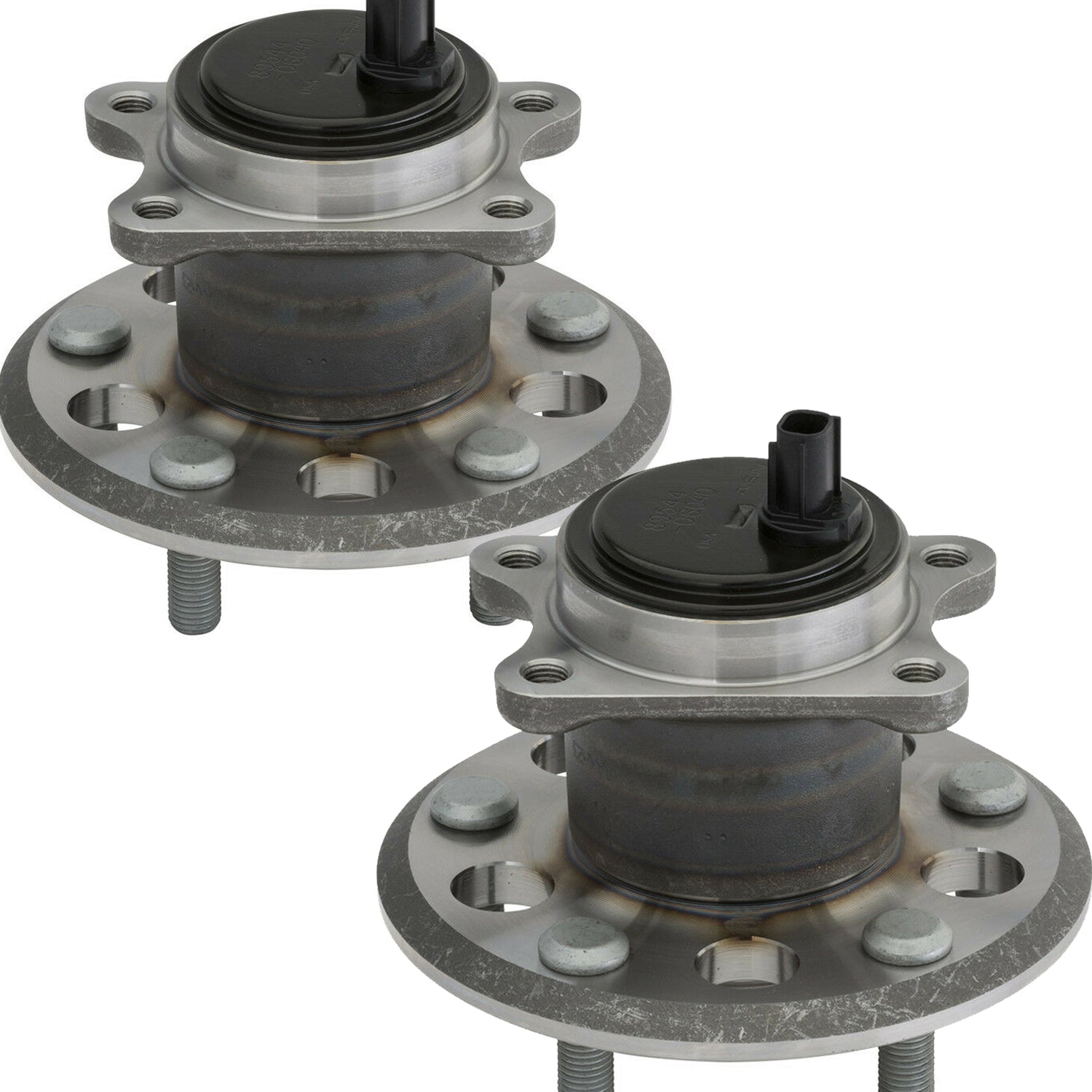

MotorbyMotor Rear Wheel Bearing and Hub Assembly Fit Toyota Camry, Toyota Avalon Wheel Hub w/ABS 5 Lugs 512454 512455
Fit the Following Vehicles:
2013 2014 2015 2016 2017 2018 Toyota Avalon Hybrid Limited
2013 2014 2015 2016 2017 2018 Toyota Avalon Hybrid XLE
2013 2014 2015 2016 2017 2018 Toyota Avalon Hybrid XLE Plus
2013 2014 2015 2016 2017 2018 Toyota Avalon Hybrid XLE Premium
2013 2014 2015 2016 2017 2018 Toyota Avalon Hybrid XLE Touring
2013 2014 2015 2016 2017 2018 Toyota Avalon Limited
2013 2014 2015 2016 2017 2018 Toyota Avalon Touring
2013 2014 2015 2016 2017 2018 Toyota Avalon XLE
2013 2014 2015 2016 2017 2018 Toyota Avalon XLE Plus
2013 2014 2015 2016 2017 2018 Toyota Avalon XLE Premium
2013 2014 2015 2016 2017 2018 Toyota Avalon XLE Touring
2013 2014 2015 2016 2017 2018 Toyota Avalon XLE Touring SE
2012 2013 2014 2015 2016 2017Toyota Camry Hybrid LE
2012 2013 2014 2015 2016 2017Toyota Camry Hybrid SE
2012 2013 2014 2015 2016 2017Toyota Camry Hybrid XLE
2012 2013 2014 2015 2016 2017Toyota Camry L
2012 2013 2014 2015 2016 2017Toyota Camry LE
2012 2013 2014 2015 2016 2017Toyota Camry SE
2012 2013 2014 2015 2016 2017Toyota Camry Special Edition
2012 2013 2014 2015 2016 2017Toyota Camry XLE
2012 2013 2014 2015 2016 2017Toyota Camry XSE
Description:
Position:Driver (LH Left) and Passenger(RH Right) Side Rear
ABS Sensor Included: Yes
ABS Connector Shape: Rectangle
Wiring Harness Included: No
Number Of Mounting Bolts To Knuckle: 4
Number Of Lug Bolts Included: 5
ABS Ring Type: Sensor
Total Hub Diameter (in): 5.98 Inch
Hub Centerbore Diameter (in): 4.5 Inch
Total Hub Height (in): 5.59 Inch
Flange Diameter (in): 2.44 Inch
Flange Offset (in): 2.66 Inch
Flange Bolt Size (in): 1.04 Inch
Hub Pilot Diameter (in): 2.91 Inch
Flange Bolt Thread Size: M12-1.50
Material: Steel
Bearing Type: Ball
