AFA-Motors

Chevy Window Crank Extension fits Chevy Camaro Corvette GM Buick Pontiac Olds

Chevy Window Crank Extension fits Chevy Camaro Corvette GM Buick Pontiac Olds

$22.12 USD
$22.12 USD
Sale Sold out
Shipping calculated at checkout.
SKU: GM-581115-A
View full details

Description

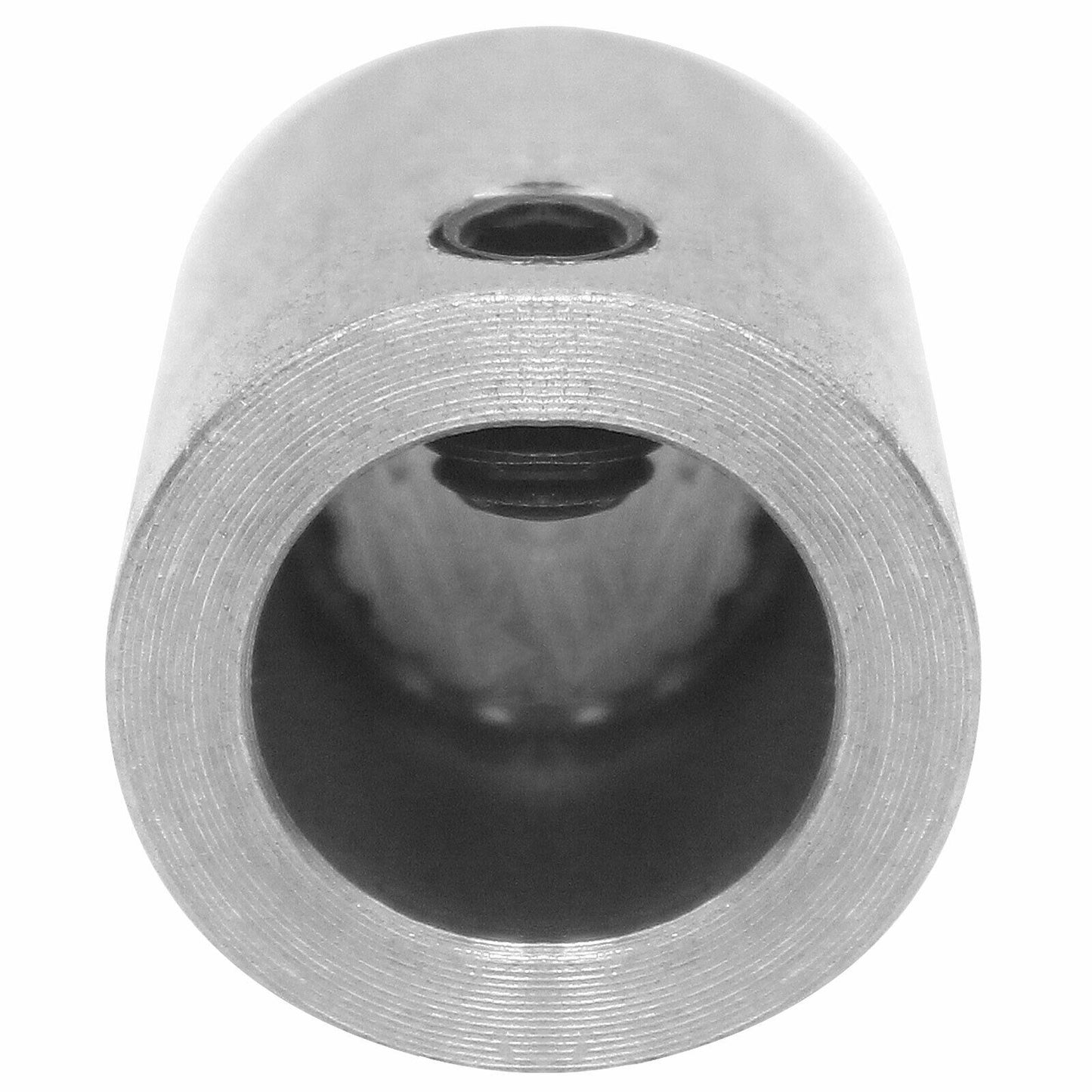

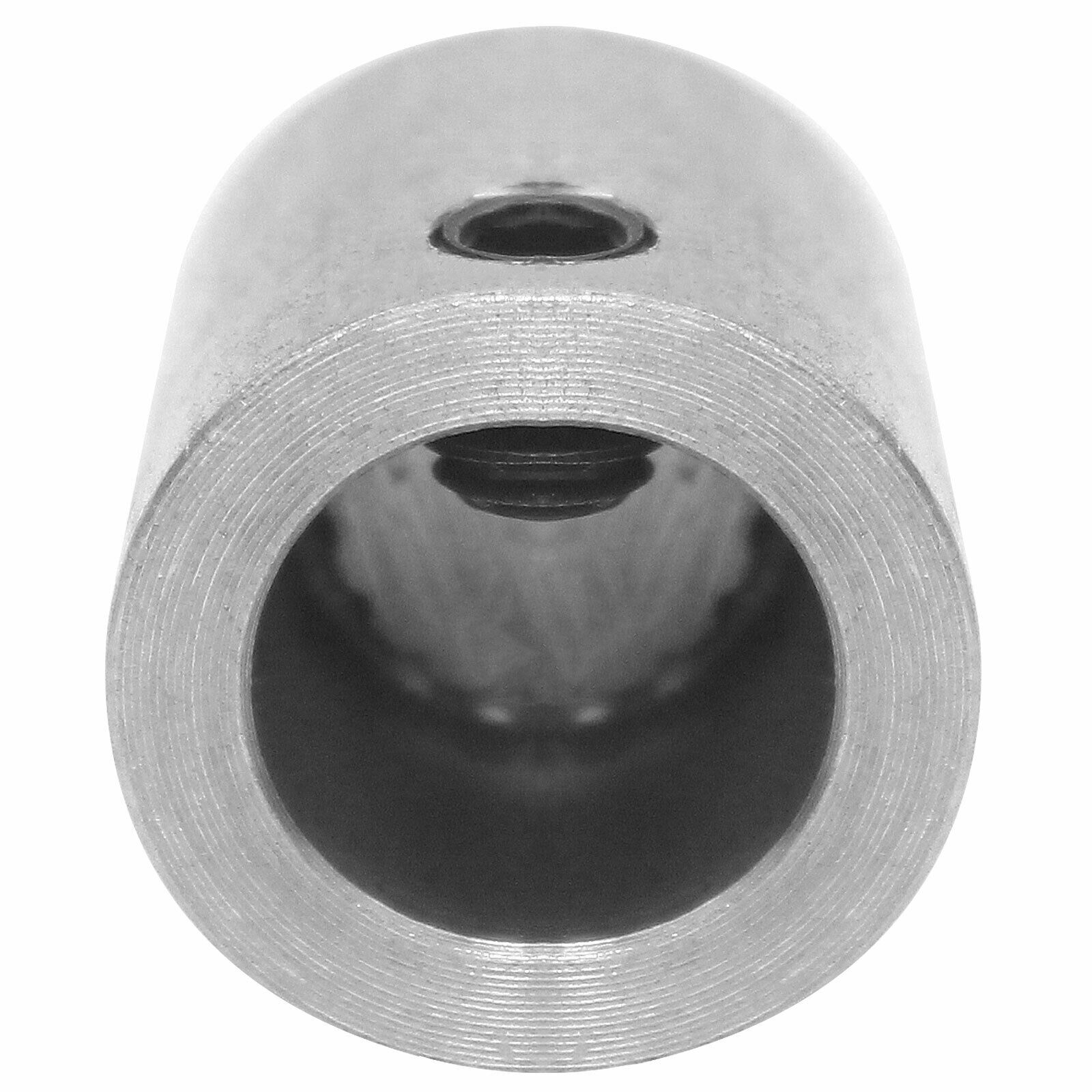

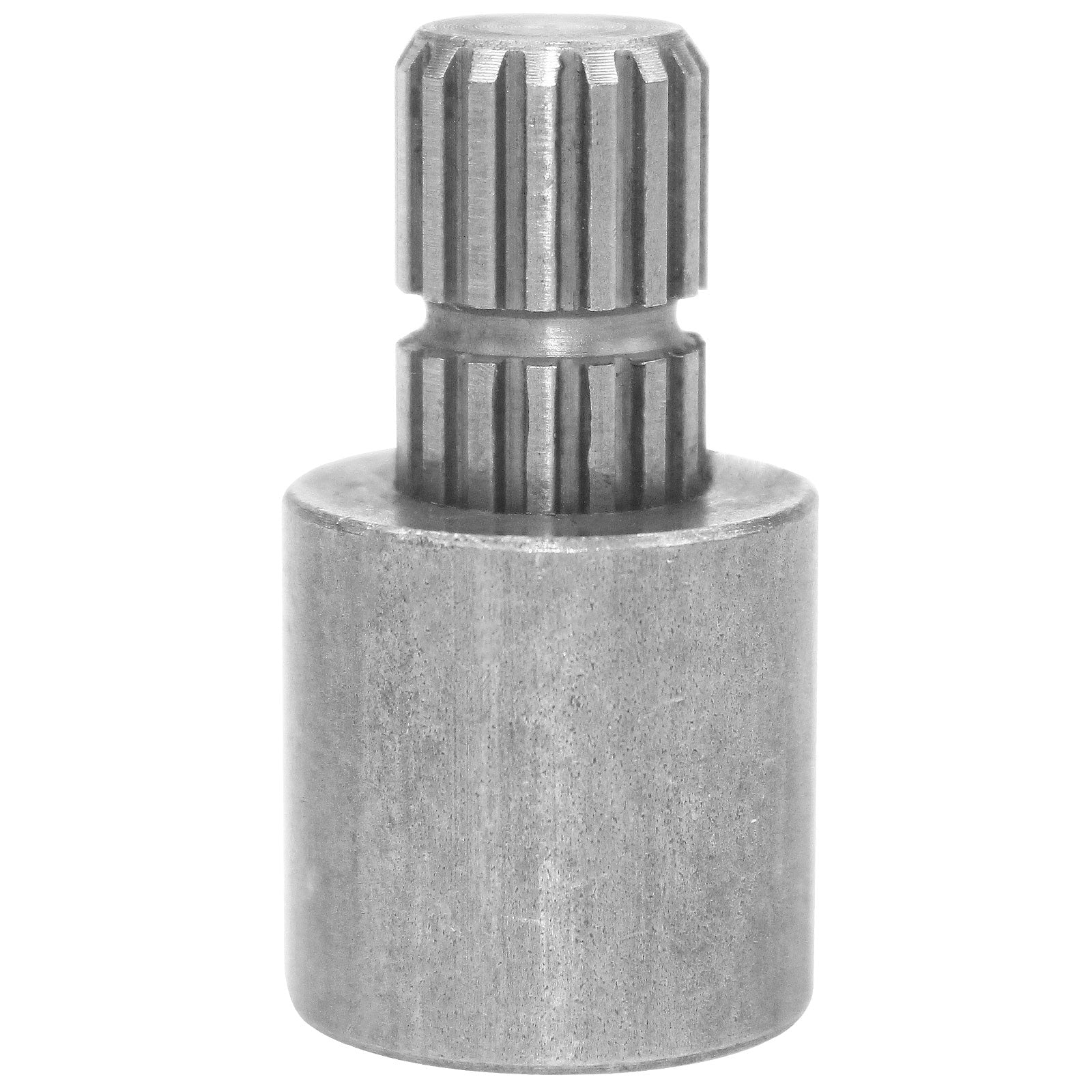

Universal Window Crank Shaft Extension and Door Latch Shaft Extension.
Detail information :

1. How to install
   First, Remove the stock door handle(s) and remove the armrest and door panel as required. Install crankshaft extension over the existing shaft and tighten set screw(s) with a 1/8" hex head, Allen wrench to 72-75 inch pounds (We recommend using Blue Lock-Tite on the set screw to prevent it from backing out)

   As a note: the set screw is made of steel with a cone point for the best possible holding capacity. With proper torque, the pointed end of the set screw(s) will bite to the steel shaft and ensure it won't loosen up over time
   Next,  re-install the door panel and push the door handle on to the shaft extension. Check to ensure the clip is engaged into the groove on the shaft extension.

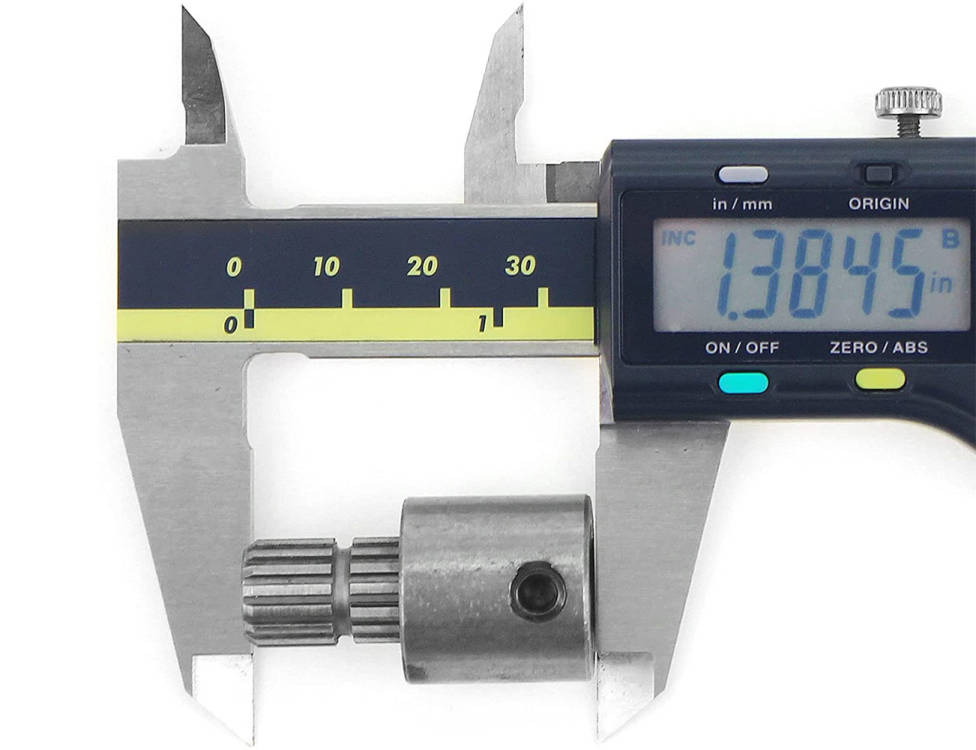

    This product will extend your door handle shaft by 5/8" (tolerance is 0 to + 1/16") depending on the length of your existing shaft. If you need another 1/8" to 1/4" don't bottom out the extension on the original shaft when installing the extension and if you need a little less extension, you can grind down the existing shaft to about where the groove for the c-clip would go ... just be sure the set screw will properly engage the original shaft then install the extension.

2. Fitment:

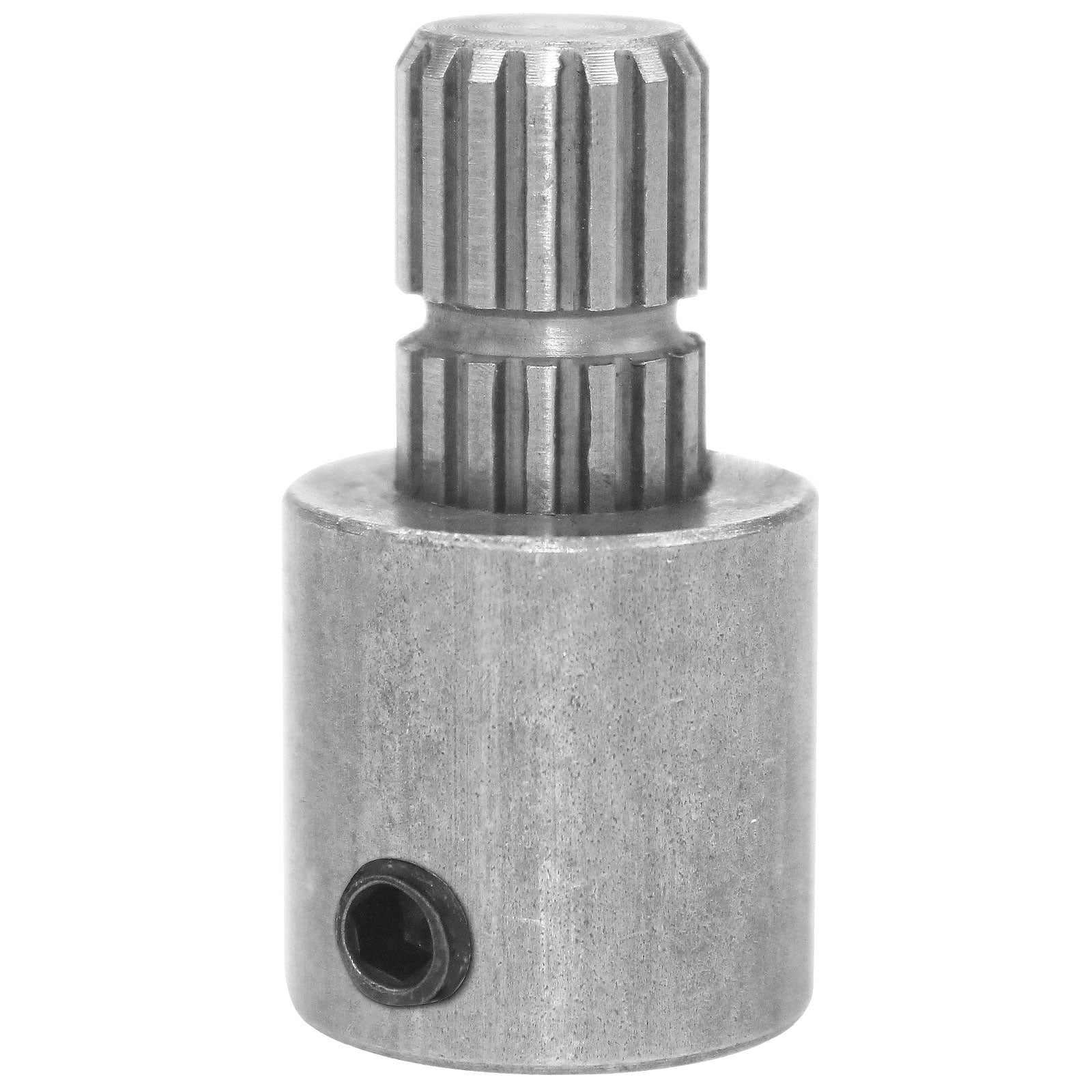

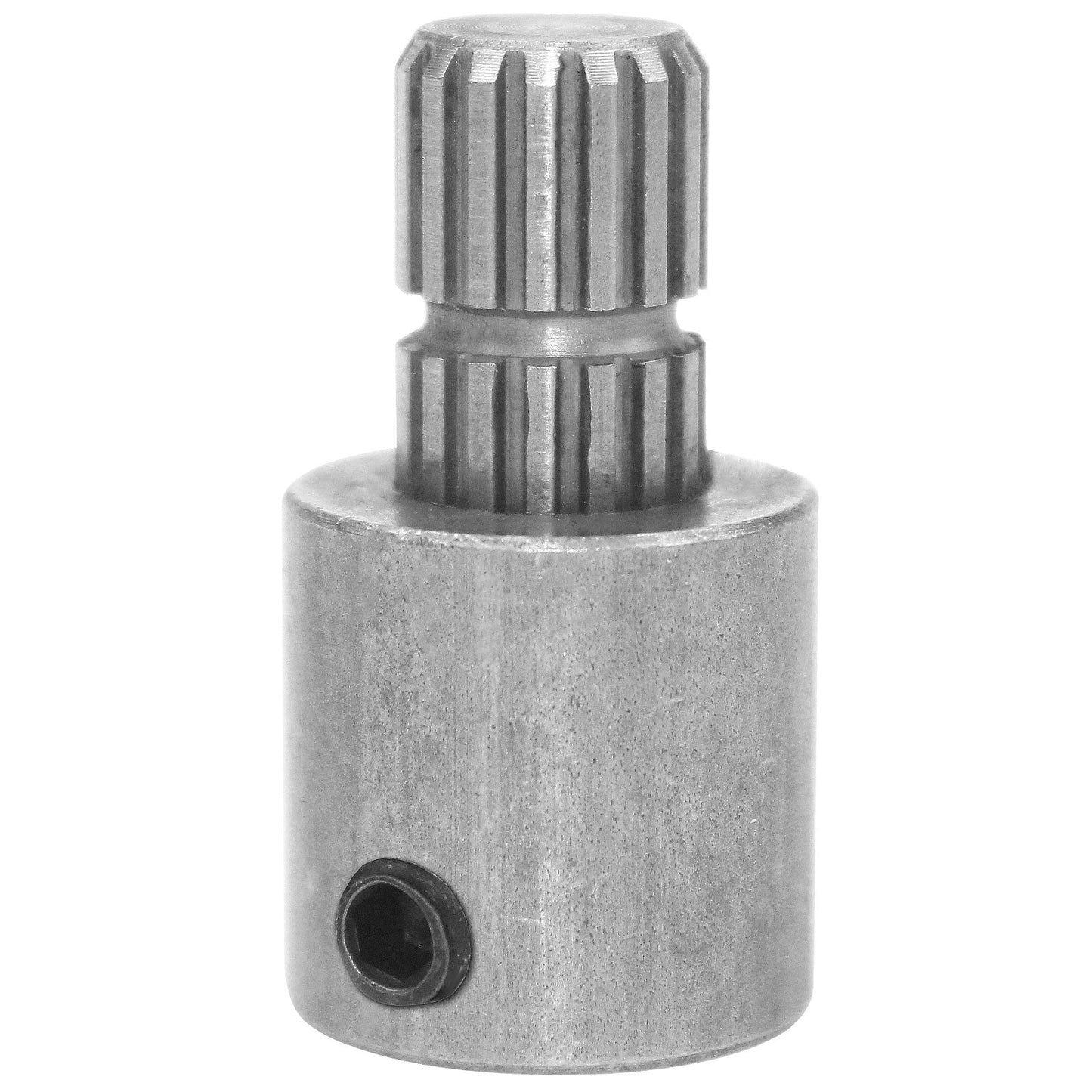

     Fits most 1950-1990 General Motors Products (Chevy, GMC, Pontiac, Buick, Olds, GM and Chevy Trucks, Camaro, Corvette, Cadillac) and many other domestic cars and trucks  ( Jeep, Dodge, Chrysler cars and even imports like Toyota, Mazda, Nissan, Honda, Subaru, Hyundai, Mitsubishi, ...) with at ~1/2" diameter splined shaft on the window regulator (GM Spec for shaft diameter is .41 to .46 depending on whether it is a window crank, door latch release, wing vent crank or door lock... Our product fits most of them), 16 spline shaft in which the window or door handle is attached to the shaft with a "C" clip as depicted in photo # 2 and #3 of this offering.
