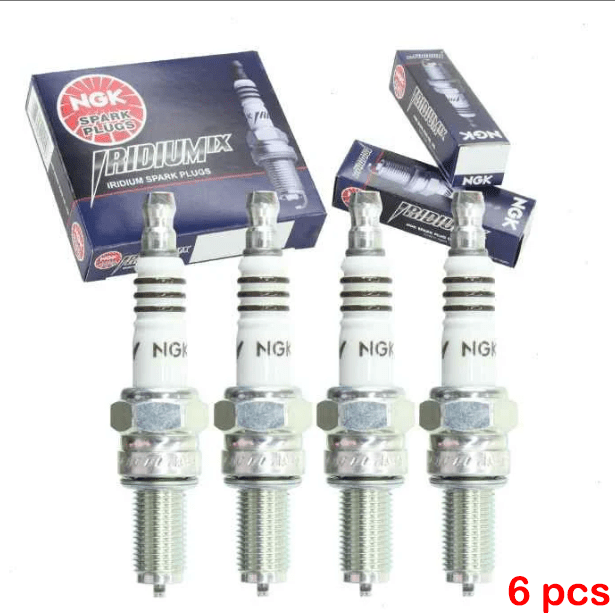

Arctic Cat Harley-Davidson Kawasaki Textron Triumph Yamaha NGK 3521 CR9EIX Iridium IX Spark Plug 6pcs

Arctic Cat Harley-Davidson Kawasaki Textron Triumph Yamaha NGK 3521 CR9EIX Iridium IX Spark Plug 6pcs

$29.80 USD
$63.30 USD $29.80 USD
Sale Sold out
Shipping calculated at checkout.
SKU: NGK3521
View full details

Description

NGK IX Iridium Series plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high performance engines.

  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs prevent flashover
  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage

Shell

  • Thread Diameter10mm
  • Thread Pitch1.0mm
  • Seat TypeGasket
  • Reach19mm (3/4")
  • Hex Size5/8" (16mm)
  • Terminal TypeRemovable Nut
  • Overall HeightISO
  • Gap.031" (0.8mm)

Center Electrode

  • MaterialIridium
  • TypeFine Wire
  • Size0.6mm
  • ProjectionNon-Projected

Ground Electrode

  • MaterialNickel
  • TypeStandard
  • ShapeTaper Cut
  • Quantity1

Specifications

  • ResistorYes
  • Resistor Value5k Ohm
  • Heat Range9
  • Torque SpecsCast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.
