Toyota GR86 Rear Wheel Bearing Hub Assembly 2022-2023 512401
Toyota GR86 Rear Wheel Bearing Hub Assembly 2022-2023 512401
Couldn't load pickup availability
Collapsible content
Description

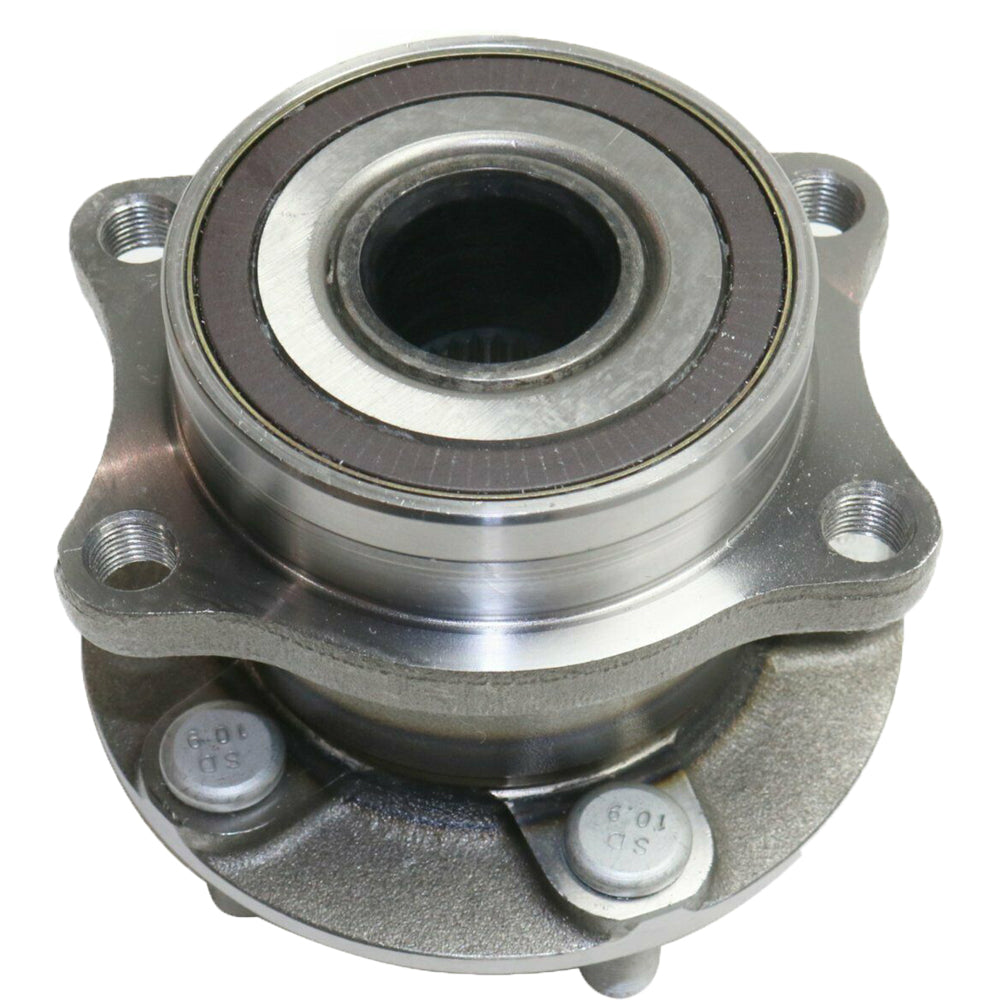

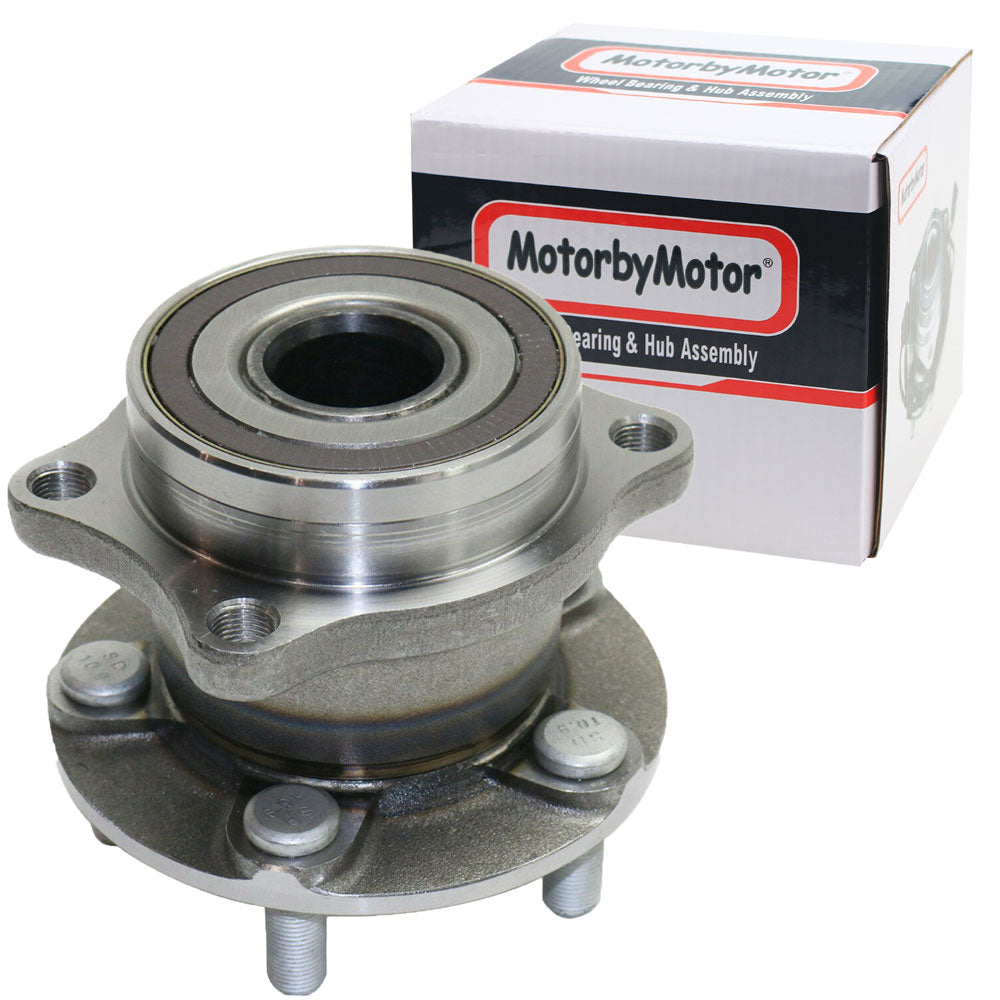

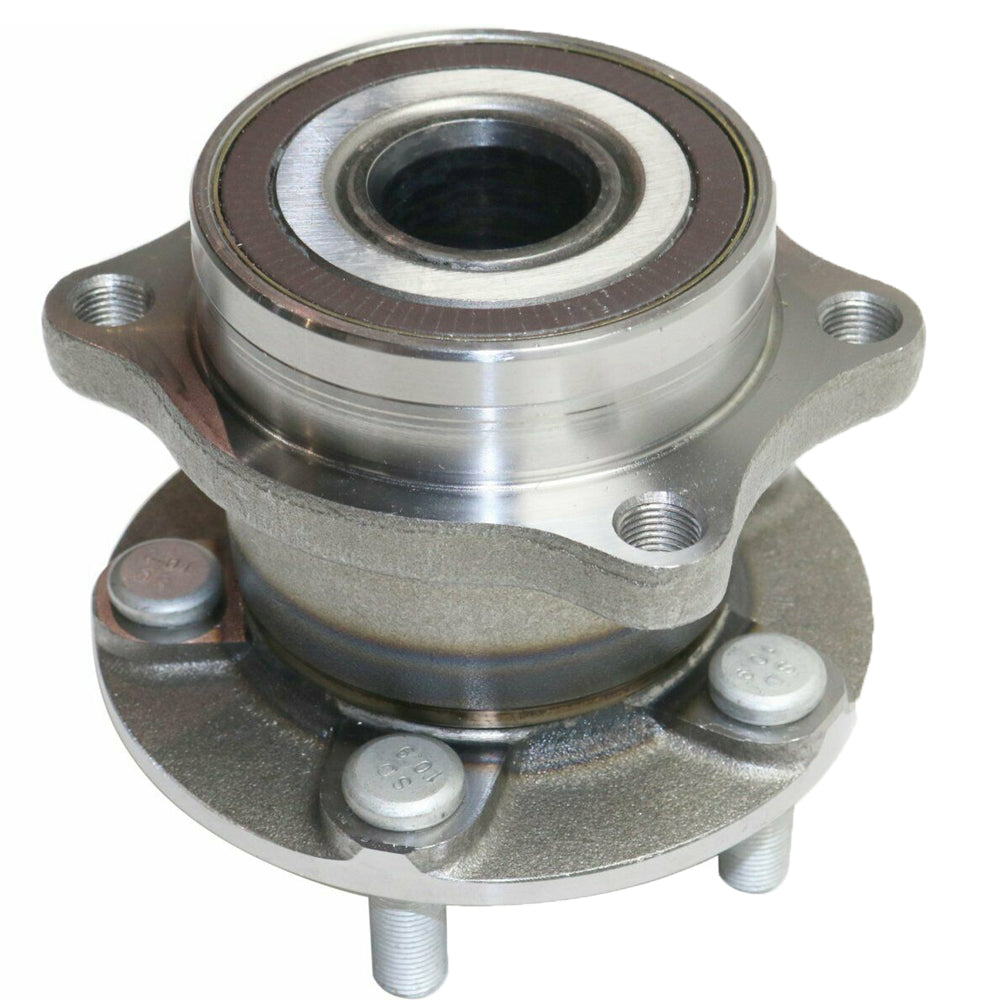

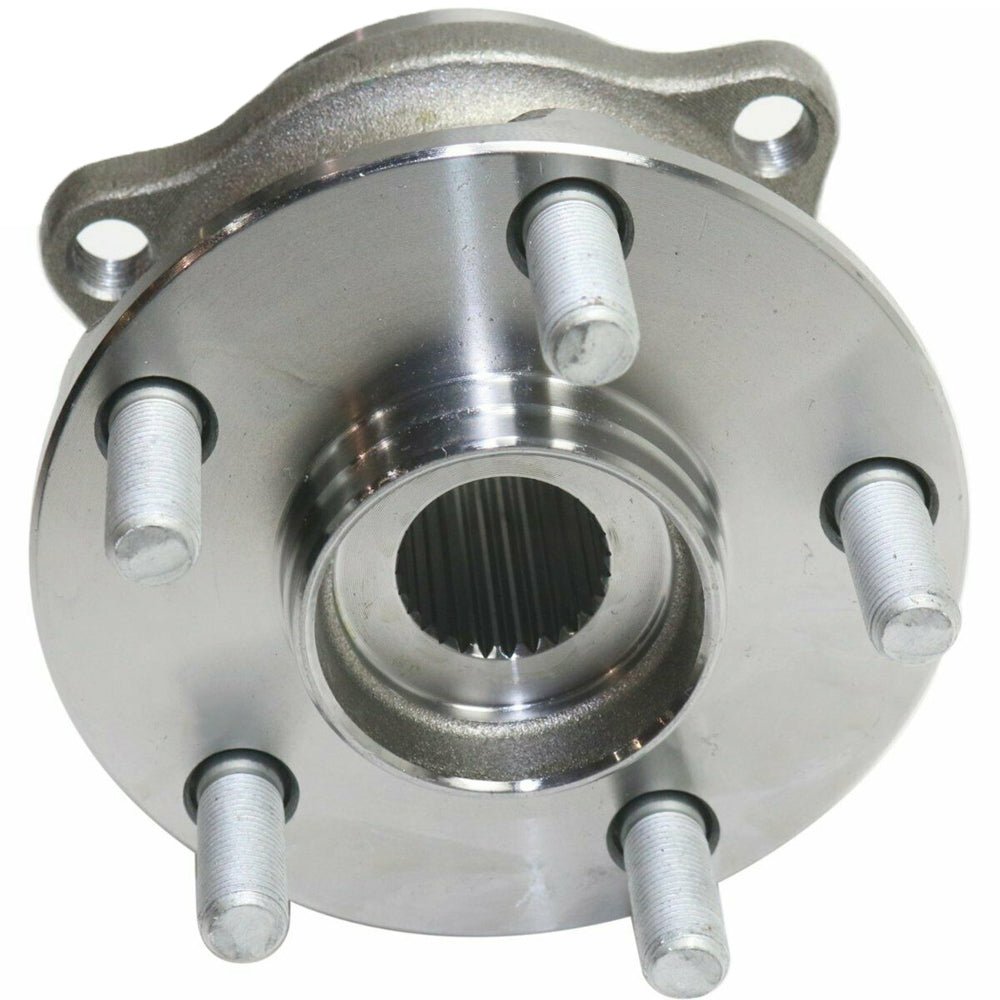

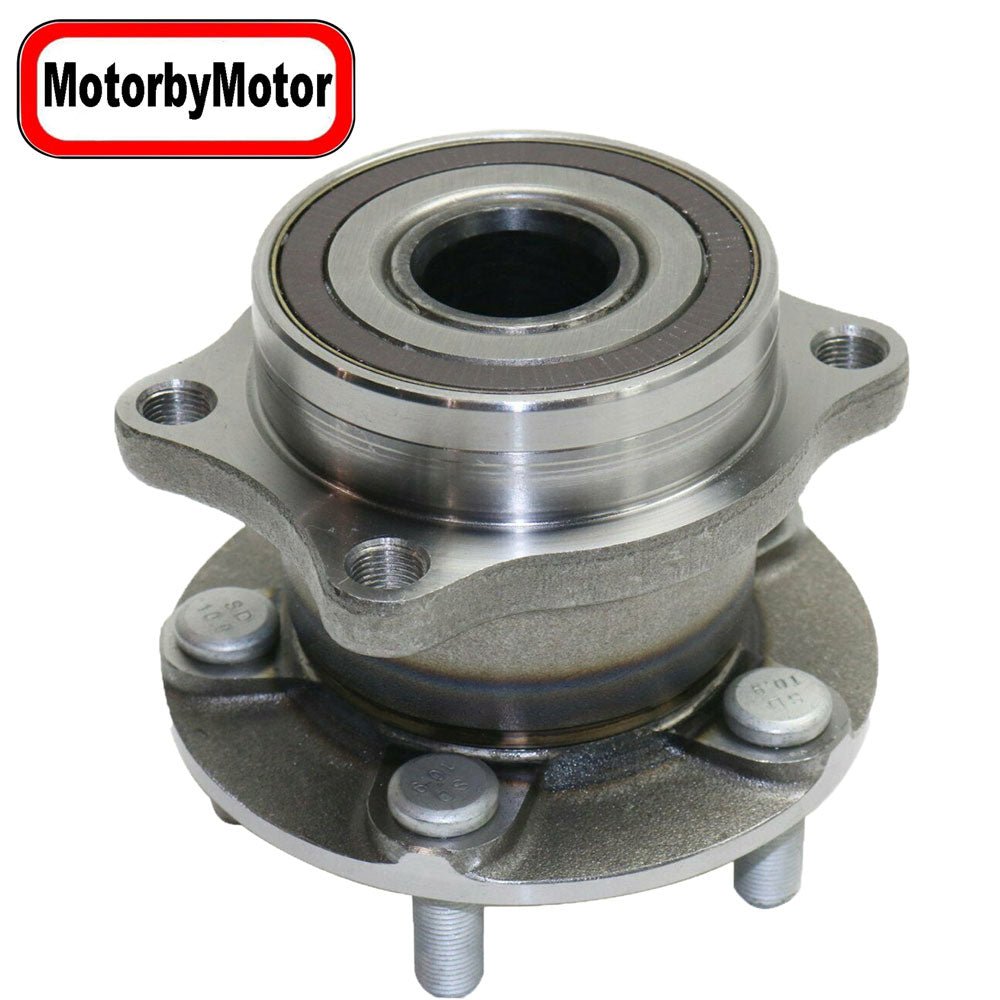

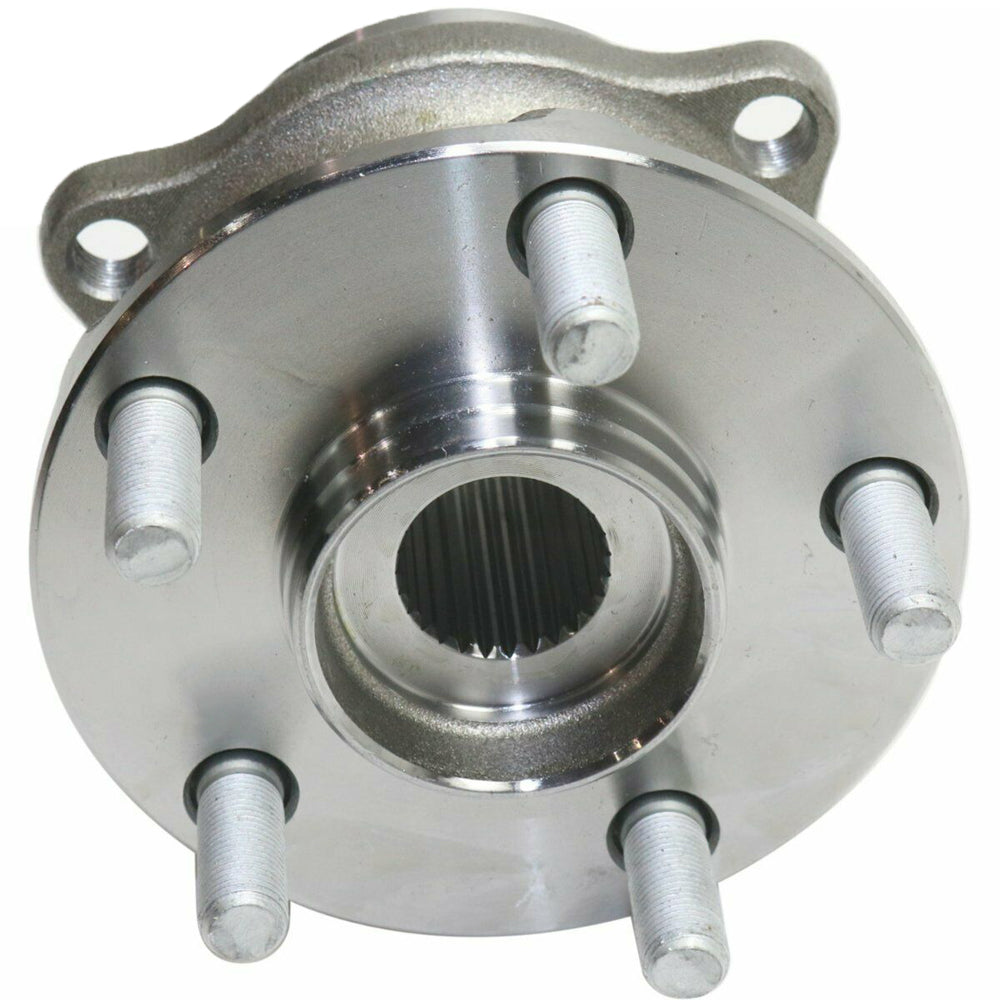

Motorbymotor 512401 rear wheel bearing hub assembly
Specifications:
| Anti Lock Brake Sensor Included | Yes |
| Bolt Circle Diameter (IN) | 3.937 |
| Bolt Circle Diameter (MM) | 100.200 |
| Brake Pilot Diameter (MM) | 57.900 |
| Flange Bolt Hole Quantity | 4 |
| Flange Diameter (MM) | 123.900 |
| Flange Offset (MM) | 66.500 |
| Flange Shape | Modified |
| Hub Pilot Diameter (MM) | 83.900 |
| Spline Quantity | 27 |
| Wheel Pilot Diameter (MM) | 55.900 |
| Wheel Stud Quantity | 5 |
Fitment for motorbymotor - 512401
Subaru Forester 2009 - 2013 All Models
Subaru BRZ 2013 - 2019 All Models
Subaru Legacy 2010 - 2014 All Models
Subaru Outback 2010 - 2014 All Models
Subaru Crosstrek 2019-2021 All Models
Subaru Impreza 2008 2.5I-OUTBACK SPORT-SPORT-WRX
Subaru Impreza 2009 2.5 GT-2.5I-OUTBACK SPORT-SPORT-WRX-WRX PREMIUM
Subaru Impreza 2010 2.5 GT-2.5I-2.5I LIMITED-2.5I PREMIUM-OUTBACK SPORT-WRX-WRX LIMITED-WRX PREMIUM
Subaru Impreza 2011 2.5I-2.5I PREMIUM-OUTBACK SPORT-WRX-WRX LIMITED
Subaru Impreza 2012 WRX-WRX LIMITED
Subaru Impreza 2013 WRX-WRX LIMITED-WRX PREMIUM-WRX STI-WRX STI LIMITED
Subaru Impreza 2014 WRX SaTI
Subaru WRX 2014 All Models
Subaru WRX STi 2014 BASE MODEL-SPORT TECH
TOYOTA 86 2017-2019 All Models
Scion FRS 2013 - 2016 All Models
Warranty & Returns
Warranty:
The brake rotor series provides a ten-year warranty, three-year warranty for other series of products
Returns:
If the product is properly installed on the type of vehicle prescribed and found to be defective in workmanship or materials, there is no need to return it to the seller, we will provide a free replacement.
We offer a free return period up to 60 days.For any uninstalled products received within 60 days, we will provide a unconditional free returns for products that you no longer need.
If the product is damaged during transit, please provide pictures including the shipping label, the physical picture of the product, and the product packing box.
