Toyota Prius Sensor 2014-2015

Toyota Prius Sensor 2014-2015

$82.49 USD
$82.49 USD
Sale Sold out
Shipping calculated at checkout.
SKU: AFWBR512505x2
View full details

Description

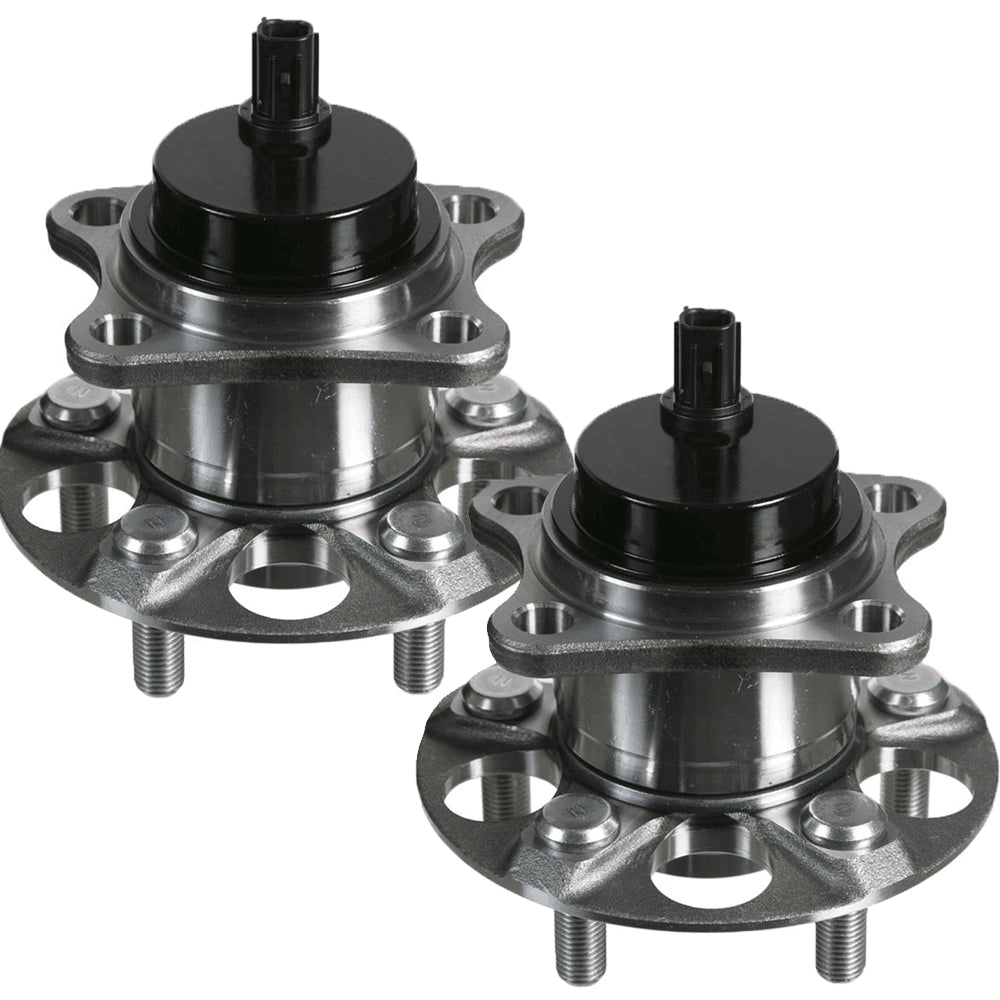

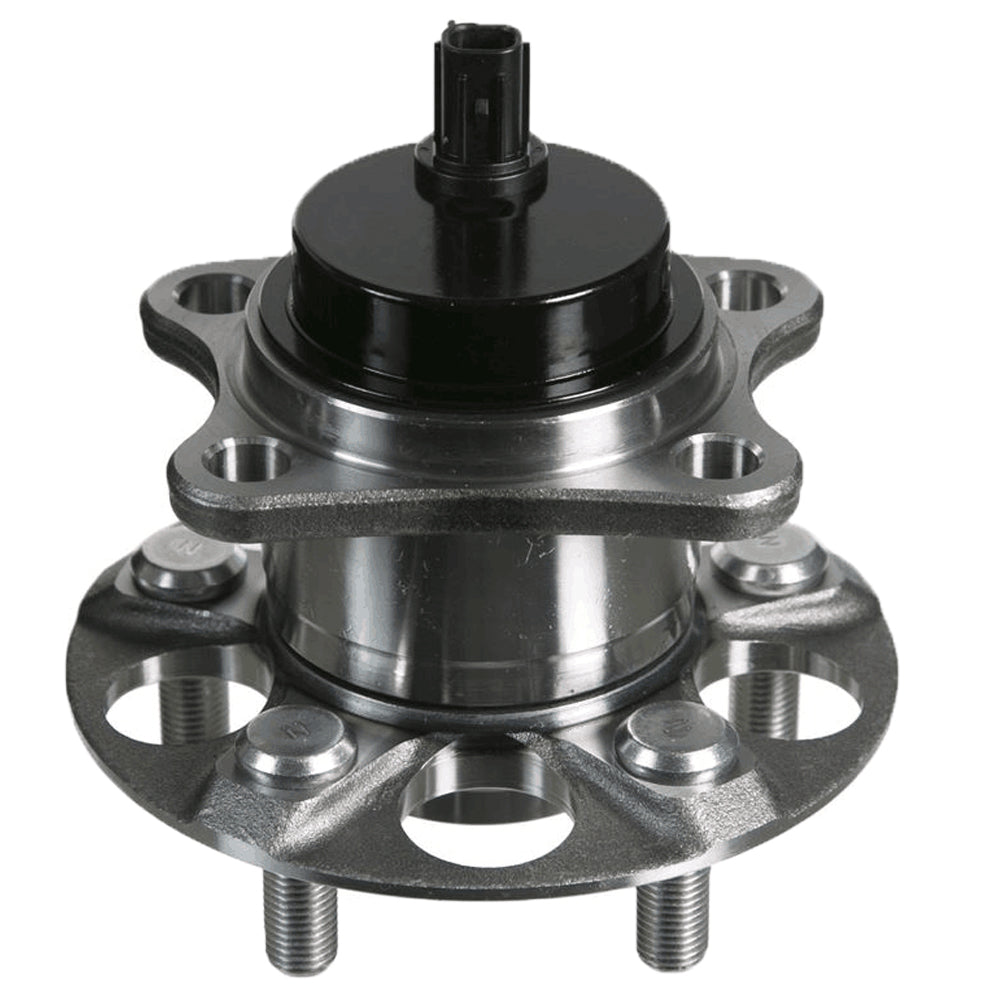

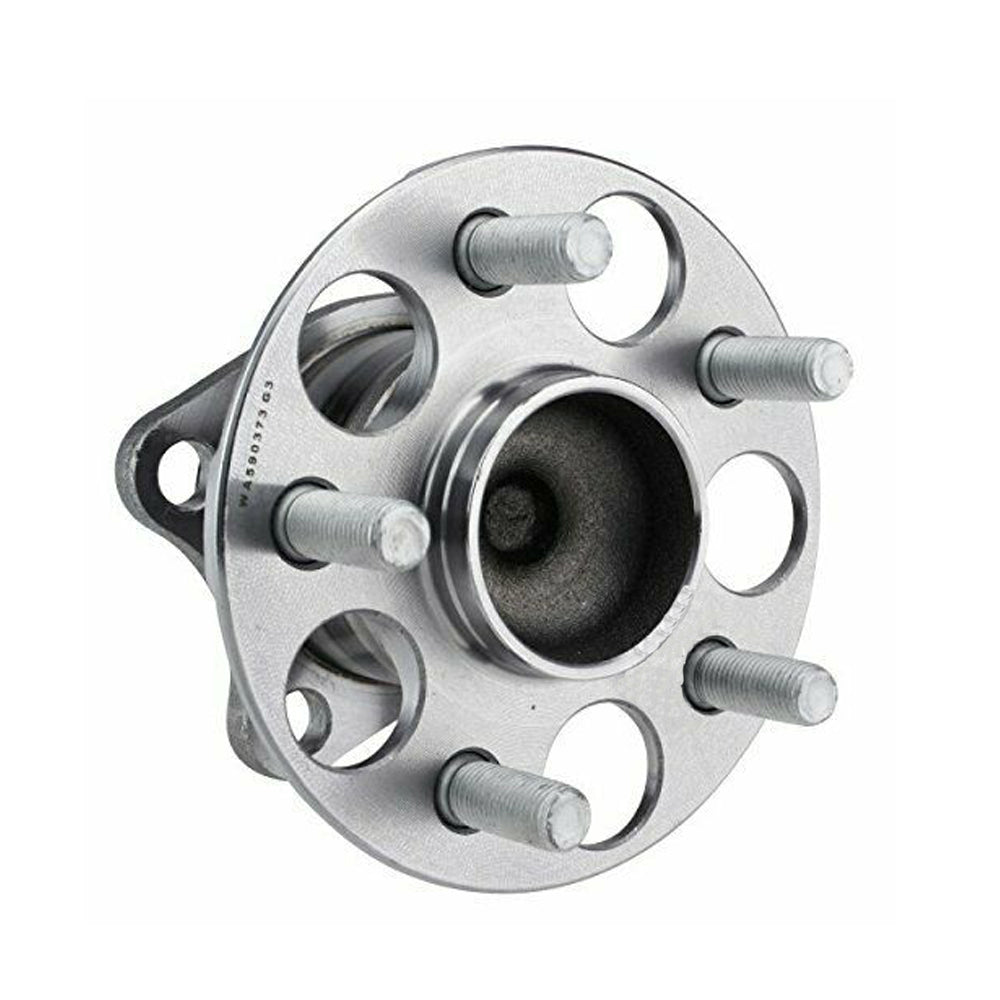

512505 Rear Hub Assembly

Rear hub assembly for driver or passenger side with ABS sensor. Steel construction ensures durability and precise fit for Toyota Prius models.

What's Included

  • 2 Pcs 512505 Rear Hub Assemblies

Product Specifications

  • Position: Driver (LH Left) or Passenger (RH Right) Side Rear
  • ABS Sensor Included: Yes
  • Wiring Harness Included: No
  • Number Of Mounting Bolts To Knuckle: 4
  • Number Of Lug Bolts Included: 5
  • Driven Or Non-Driven: Non-Driven
  • ABS Ring Type: Sensor
  • Number Of ABS Sensor Ring Teeth: 48
  • Total Hub Diameter: 5.31 Inch
  • Hub Centerbore Diameter: 3.94 Inch
  • Total Hub Height: 5.56 Inch
  • Flange Diameter: 2.17 Inch
  • Flange Offset: 2.36 Inch
  • Flange Shape: Round
  • Flange Bolt Size: 1.21 Inch
  • Flange Bolt Thread Size: M12-1.50
  • Hub Pilot Diameter: 2.91 Inch
  • Material: Steel

Vehicle Compatibility

Year Make Model Details
2014-2015 Toyota Prius Plug-In Rear Hub Assembly
2010-2015 Toyota Prius Rear Hub Assembly
